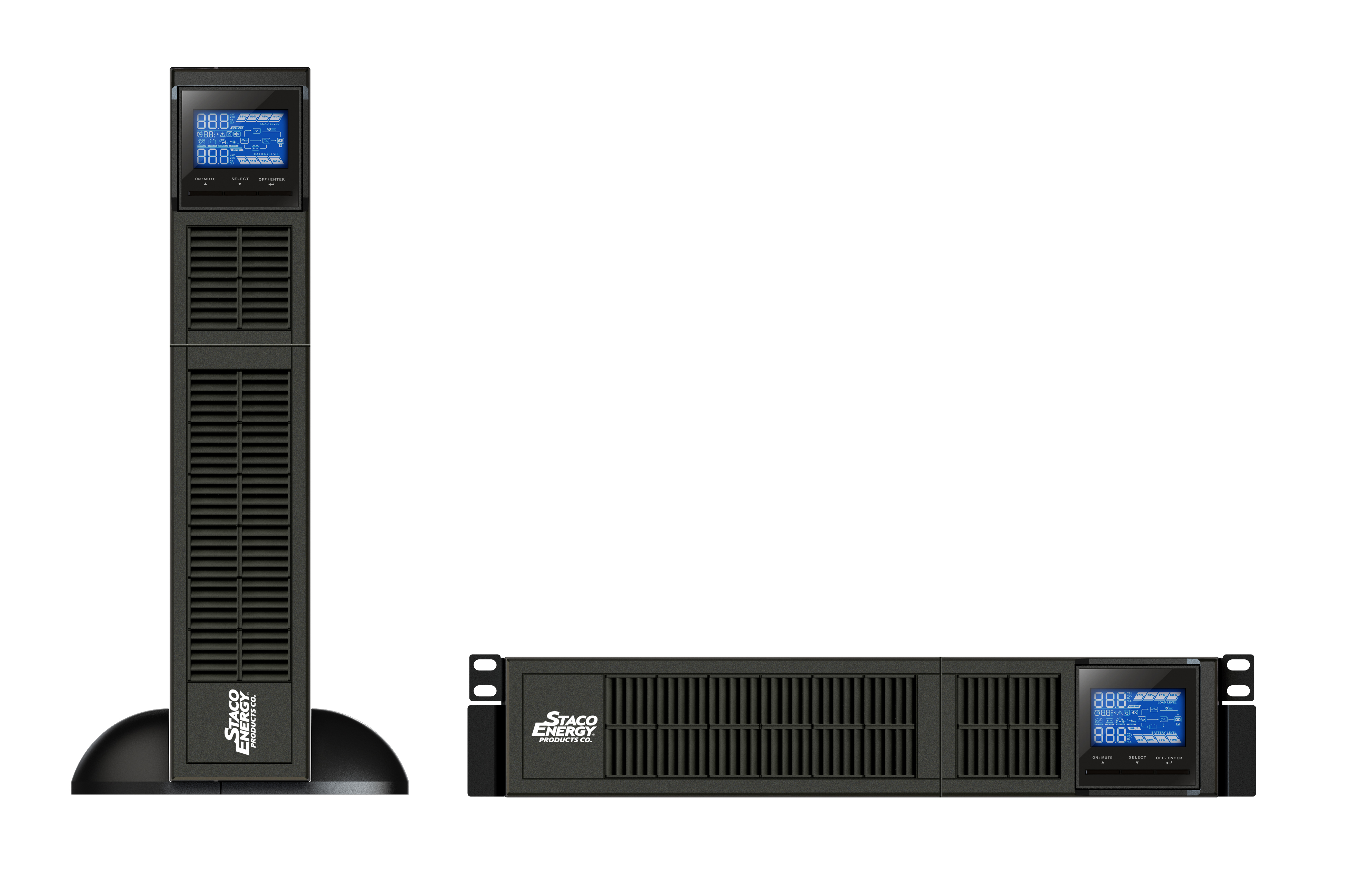

Staco V

1, 1.5, 2, 3 kVA (Universal Tower / Rack Mount)
Single Phase, On-Line Double Conversion, Uninterruptible Power Supply

The Staco V pluggable series of UPS provides the highest level of secure, conditioned power protection available for all power-dependent applications, ensuring continuous business operation even in the most demanding of environments.

Incorporating an intelligent battery management system, the Staco V has a load and temperature dependent battery charging circuit which protects against overcharge, maximizing battery life. A fast recharge circuit also ensures maximum uptime, even in the event of multiple power failures in a short time.

Designed for use in both standard- and non-standard IT environments, the Staco V UPS delivers the ultimate critical power protection in a compact, 2U footprint.






  • Voltage and Frequency Independent (VFI) Technology
  • 0.9 power factor
  • Zero interruption on battery transfer
  • Intelligent battery management
  • Extended runtime options
  • Easy installation, plug and play
  • LCD graphical user interface
  • Compact 2U form factor
  • Hot-swappable batteries
  • Three year product warranty, 1 year battery warranty

Market Applications:

  • Broadcast
  • Small to mid-sized networks
  • Processing Manufacturing
  • Hospitals/Medical
  • Education/Research Laboratories
  • Telecom

*For more detailed application information, please refer to the following document: Single Phase UPS Application Notes: 1-3kVA

Load kVA / kW: 1kVA / 0.9kW
Input Voltage: 120
Output Voltage: 120
Input Cord: 5-15P
Output Connection: (4) 5-15R
Dimensions W x H x D (inches): 17.24 x 3.39 x 16.44 (2U)
Weight (lbs): 29
Load kVA / kW: 1.5kVA / 1.35kW
Input Voltage: 120
Output Voltage: 120
Input Cord: 5-15P
Output Connection: (4) 5-15R
Dimensions W x H x D (inches): 17.24 x 3.39 x 20.38 (2U)
Weight (lbs): 42
Load kVA / kW: 1kVA / 0.9kW
Input Voltage: 230
Output Voltage: 230
Input Cord: (10A) IEC320-C14
Output Connection: (8) IEC60320
Dimensions W x H x D (inches): 17.24 x 3.39 x 16.44 (2U)
Weight (lbs): 28
Load kVA / kW: 1.5kVA / 1.35kW
Input Voltage: 230
Output Voltage: 230
Input Cord: (10A) IEC320-C14
Output Connection: (8) IEC60320
Dimensions W x H x D (inches): 17.24 x 3.39 x 20.38 (2U)
Weight (lbs): 39
Load kVA / kW: 1kVA / 0.81kW
Input Voltage: 120
Output Voltage: 120
Input Cord: 5-15P
Output Connection: (4) 5-15R
Dimensions W x H x D (inches): 17.24 x 3.39 x 16.44 (2U)
Weight (lbs): 20
Load kVA / kW: 1.5kVA / 1.125kW
Input Voltage: 120
Output Voltage: 120
Input Cord: 5-15P
Output Connection: (4) 5-15R
Dimensions W x H x D (inches): 17.24 x 3.39 x 20.38 (2U)
Weight (lbs): 26
Load kVA / kW: 1kVA / 0.9kW
Input Voltage: 230
Output Voltage: 230
Input Cord: (10A) IEC320-C14
Output Connection: (8) IEC60320
Dimensions W x H x D (inches): 17.24 x 3.39 x 16.44 (2U)
Weight (lbs): 19
Load kVA / kW: 1.5kVA / 1.35kW
Input Voltage: 230
Output Voltage: 230
Input Cord: (10A) IEC320-C14
Output Connection: (8) IEC60320
Dimensions W x H x D (inches): 17.24 x 3.39 x 20.38 (2U)
Weight (lbs): 24
Load kVA / kW: 2kVA / 1.8kW
Input Voltage: 120
Output Voltage: 120
Input Cord: 5-20P
Output Connection: (8) 5-20R
Dimensions W x H x D (inches): 17.24 x 3.39 x 20.38 (2U)
Weight (lbs): 47
Load kVA / kW: 2kVA / 1.8kW
Input Voltage: 230
Output Voltage: 230
Input Cord: (10A) IEC320-C14
Output Connection: (8) IEC60320
Dimensions W x H x D (inches): 17.24 x 3.39 x 20.38 (2U)
Weight (lbs): 45
Load kVA / kW: 2kVA / 1.53kW
Input Voltage: 120
Output Voltage: 120
Input Cord: 5-20P
Output Connection: (8) 5-20R
Dimensions W x H x D (inches): 17.24 x 3.39 x 20.38 (2U)
Weight (lbs): 28
Load kVA / kW: 2kVA / 1.8kW
Input Voltage: 230
Output Voltage: 230
Input Cord: (10A) IEC320-C14
Output Connection: (8) IEC60320
Dimensions W x H x D (inches): 17.24 x 3.39 x 20.38 (2U)
Weight (lbs): 24
Load kVA / kW: 3kVA / 2.7kW
Input Voltage: 120
Output Voltage: 120
Input Cord: L5-30P
Output Connection: (4) 5-20R & (1) L5-30R
Dimensions W x H x D (inches): 17.24 x 3.39 x 27.74 (2U)
Weight (lbs): 65
Load kVA / kW: 3kVA / 2.7kW
Input Voltage: 230
Output Voltage: 230
Input Cord: (16A) IEC320-C20
Output Connection: (6) IEC60320
Dimensions W x H x D (inches): 17.24 x 3.39 x 25.10 (2U)
Weight (lbs): 65
Load kVA / kW: 3kVA / 2.25kW
Input Voltage: 120
Output Voltage: 120
Input Cord: L5-30P
Output Connection: (4) 5-15R & (1) l5-30R
Dimensions W x H x D (inches): 17.24 x 3.39 x 27.74 (2U)
Weight (lbs): 33
Load kVA / kW: 3kVA / 2.7kW
Input Voltage: 230
Output Voltage: 230
Input Cord: (16A) IEC320-C20
Output Connection: (6) IEC60320
Dimensions W x H x D (inches): 17.24 x 3.39 x 25.10 (2U)
Weight (lbs): 30
