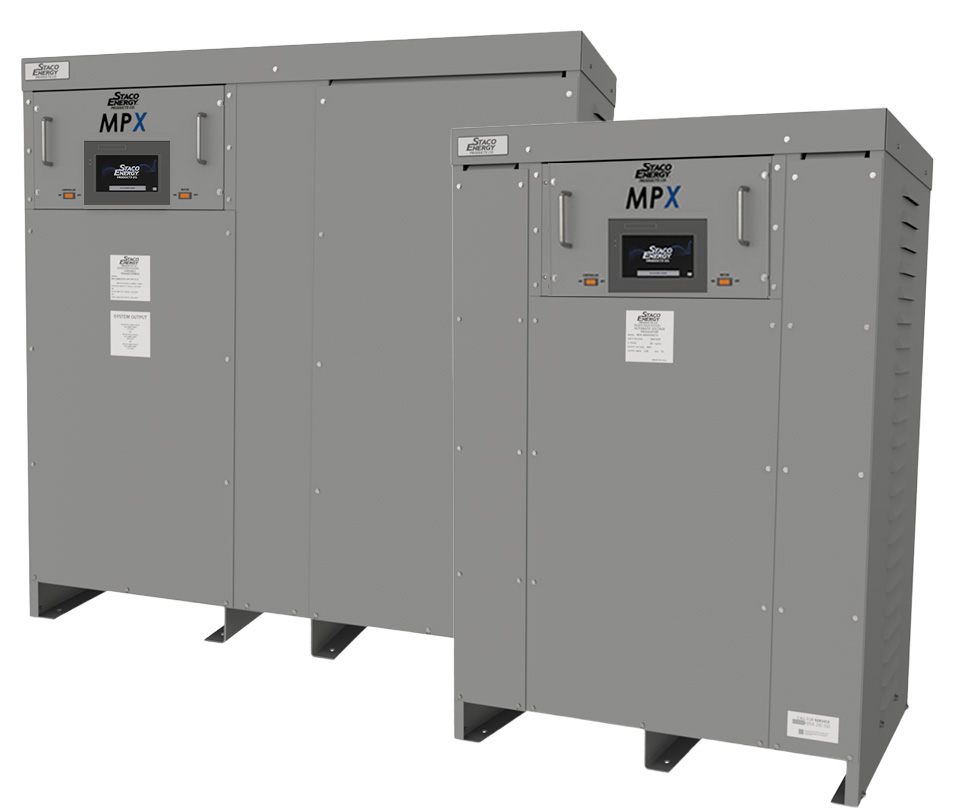

StacoAVR

Electro-Mechanical 120-600 Volt, up to 2000 kVA
Microprocessor controlled series regulation variable transformer topology designed with optional power conditioning elements including noise attenuation and SPD filters with 3-30 second full correction time.

Voltage Regulation & Power Conditioning

Problem: The quality of today's electrical power has become a major operating concern, especially for newer, high-tech equipment. Filters, surge suppressors and isolation transformers can solve many electrical problems. However, each sacrifices benefits if applied as a stand-alone solution.

Solution: When surge suppressors and isolation transformers are combined with a voltage regulator, such as one of our series of power line conditioners, the results provide an ideal solution to these power quality problems.

Our voltage regulators maintain a constant output voltage within ±1% or better, regardless of input voltage variations from +10% to-20% of the nominal input value in standard models. They are also designed and rated to meet standard industry kVA ratings for maximum application compatibility with both new and existing installations.

Their performance is guaranteed under all power factor conditions. It doesn't matter if the connected load is capacitive, resistive or inductive.

Staco Energy Products Co.'s voltage regulators are designed with maximum safety, ease of installation and efficiency in mind. Each model features a modular design, front accessibility and an enclosed, indoor, ventilated, drip-proof enclosure.

Modular construction for easy customization
Options offer more features and functionality
Very low cost of ownership due to efficiency and virtually maintenance-free operation
Trouble-free operation with no active devices in power path
1% or better output voltage regulation
Continuous voltage regulation—not crude step regulation
Redundant, manual regulation control (raise/lower switch)
Individual coil protection—avoid catastrophic cascade failures
Gold plated contacts on all coils
Nickel plated copper bus bar
Easy, front panel access for service/installation
No waveform distortion—no harmonics added
Small footprint
Able to withstand the continuous vibration of mobile applications

Broadcast
Commercial
Industrial
Marine
Medical
Mobile

AVR-48WASN002
1PH, 2.5kVA 480V to 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	0-19
Max kVA:	2.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SLC-12WBSN002-3PN
1PH, 2.5kVA 120V to 120V Stepper Line Cond, cord and plug

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	2.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SVR-12WBSN002
1PH, 2.5kVA 120V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	2.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SVR-12WBSN002R
1PH, 2.5kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	2.5
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SVR-21WBSN002
1PH, 2.5kVA 240V to 120/240V Stepper Auto Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	2.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

SVR-24WBSN002
1PH, 2.5kVA 240V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	2.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SVR-24WBSN002R
1PH, 2.5kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	2.5
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-12WBSN002
1PH, 2.5kVA 120V to 120V MP Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	2.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

SCI-41WASN003-P
1PH, 3kVA 480V to 120V AVR, Pemex Green

Phase:	Single
Input Voltage:	480
Output Voltage:	120
kVA Range:	0-19
Max kVA:	3
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

SVR-12WBSN003
1PH, 3kVA 120V to 120V Stepper Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	3
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48WASN005
1PH, 5kVA 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	0-19
Max kVA:	5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48WCSY005
3PH, 5kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	0-19
Max kVA:	5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SCI-21WASN005-P
1PH, 5kVA 240V to 120/240V AVR, Pemex Green

Phase:	Single
Input Voltage:	240
Output Voltage:	120
kVA Range:	0-19
Max kVA:	5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

SCI-41WASN005-P
1PH, 5kVA 480V to 120V AVR, Pemex Green

Phase:	Single
Input Voltage:	480
Output Voltage:	120
kVA Range:	0-19
Max kVA:	5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

SLC-12WBSN005
1PH, 5kVA 120V Stepper Line Conditioner

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SLC-21WBSN005
1PH, 5kVA 240V to 120/240V Stepper Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SVR-12WBSN005
1PH, 5kVA 120V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SVR-12WBSN005R
1PH, 5kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	5
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SVR-21WBSN005
1PH, 5kVA 240V to 120/240V Stepper Auto Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

SVR-24WBSN005
1PH, 5kVA 240V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SVR-24WBSN005R
1PH, 5kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	5
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SVR-41WASN005
1PH, 5kVA 480V to 120/240V Stepper Auto Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

MVR-24WBSN005
1PH, 5kVA 240V to 240V MP Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-12GASN007-D
1PH, 7.5kVA 120V Automatic Voltage Regulator, w/ Dig VM

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	7.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+/-20%, +/-1%

AVR-22WASN007
1PH, 7.5kVA 240V to 208V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	208
kVA Range:	0-19
Max kVA:	7.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-22WBSN007
1PH, 7.5kVA 208V to 120/240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	208
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	7.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-60WASN007
1PH, 7.5kVA 600V to 600V MP Voltage Regulator

Phase:	Single
Input Voltage:	600
Output Voltage:	600
kVA Range:	0-19
Max kVA:	7.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

PLC-21WASN007
1PH, 7.5kVA 240V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	7.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WASN007
1PH, 7.5kVA 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	0-19
Max kVA:	7.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-41WASN007
1PH, 7.5kVA 480V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	7.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-60WASN007
1PH, 7.5kVA 600V to 600V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	600
Output Voltage:	600
kVA Range:	0-19
Max kVA:	7.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SLC-12WBSN007
1PH, 7.5kVA 120V Stepper Line Conditioner

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	7.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SLC-21PBSN007
1PH, 7.5kVA 240V to 120/240V Stepper Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	7.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-17%, +/-1%
Extras:	Output SPD, Isolation Transformer

SVR-12WBSN007
1PH, 7.5kVA 120V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	7.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SVR-12WBSN007R
1PH, 7.5kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	7.5
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SVR-21PBSN007
1PH, 7.5kVA 240V to 120/240V Stepper Auto Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	7.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-17%, +/-1%
Extras:	Isolation Transformer

MLC-48WASN007
1PH, 7.5kVA 480V to 480V MP Line Conditioner

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	0-19
Max kVA:	7.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SVR-24PBSN007
1PH, 7.5kVA 240V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	7.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-17%, +/-1%

SVR-24PBSN007R
1PH, 7.5kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	7.5
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-17%, +/-1%

MVR-22WBSN007
1PH, 7.5kVA 208V to 120/240V MP Voltage Regulator

Phase:	Single
Input Voltage:	208
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	7.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-20WCSY009
3PH, 9kVA 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-24WCSD009
3PH, 9kVA 240V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-20WCSX009
3PH, 9kVA 208V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-24WCSD009
3PH, 9kVA 240V to 240V Power Line Conditioner

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-42WCSX009-C1
3PH, 9kVA 480V to 208Y/120V Power Line Cond, w/ what is C1???

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSY009
3PH, 9kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-48WCSX009
3PH, 9kVA 480V to 480Y/277V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-20WCIX009-PS
3PH, 9kVA 208V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20VCIY009
3PH, 9kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

MVR-20WCIY009
3PH, 9kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-24WCID009
3PH, 9kVA 240V MP Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	0-19
Max kVA:	9
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-21WASN010
1PH, 10kVA 240V to 120/240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	10
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

AVR-24WBSN010
1PH, 10kVA 240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	10
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-21WASN010
1PH, 10kVA 240V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	10
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WASN010
1PH, 10kVA 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	0-19
Max kVA:	10
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-41WASN010
1PH, 10kVA 480V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	10
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SCI-41WASN010-P
1PH, 10kVA 480V to 120V AVR, Pemex Green

Phase:	Single
Input Voltage:	480
Output Voltage:	120
kVA Range:	0-19
Max kVA:	10
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

SVR-12PBSN010
1PH, 10kVA 120V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	10
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-17%, +/-1%

SVR-12PBSN010R
1PH, 10kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	10
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-17%, +/-1%

SVR-24NBSN010
1PH, 10kVA 240V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	10
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-11%, +/-1%

SVR-24NBSN010R
1PH, 10kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	10
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-11%, +/-1%

MVR-48GCID010-T
3PH, 10kVA 480V to 480V MP Voltage Regulator, w/ SPD

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	0-19
Max kVA:	10
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-20%, +/-1%

AVR-24VASN013
1PH, 13kVA 240V to 240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	13
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+15%/-30%, +/-1%

AVR-12WBSN015
1PH, 15kVA 120V to 120V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	15
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-20WCSY015
3PH, 15kVA 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCID015
3PH, 15kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-21WASN015
1PH, 15kVA 240V to 120/240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

AVR-24WBSN015
1PH, 15kVA 240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	15
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCSD015
3PH, 15kVA 480V to 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-24WCSD015
3PH, 15kVA 240V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-12WASN015
1PH, 15kVA 120V Power Line Conditioner

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-20WASN015
1PH, 15kVA 208V to 208V Power Line Conditioner

Phase:	Single
Input Voltage:	208
Output Voltage:	208
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-20WCSX015
3PH, 15kVA 208V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-38WDSY015
3PH, 15kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	0-19
Max kVA:	15
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-21WASN015
1PH, 15kVA 240V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-22WCSX015
3PH, 15kVA 240V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-26WCSX015
3PH, 15kVA 240V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-32WCSX015
3PH, 15kVA 380V to 220Y/127V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	220Y/127
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-41WASN015-P
1PH, 15kVA 480V to 120/240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

PLC-3487
3PH, Custom 15kVA 480V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-38WCSX015
3PH, 15kVA 380V to 380Y/220V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	380Y/220
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-39WCSX015
3PH, 15kVA 380V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WASN015
1PH, 15kVA 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-41WASN015
1PH, 15kVA 480V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSD015
3PH, 15kVA 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-42WCSX015
3PH, 15kVA 480V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSY015
3PH, 15kVA 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-43WCSX015
3PH, 15kVA 480V to 240Y/138V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	240Y/138
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSY015-LTPS1
Staco AVR 15kVA with options LTPS1

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-48WCSX015
3PH, 15kVA 480V to 480Y/277V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SCI-41WASN015-P
1PH, 15kVA 480V to 120V AVR, Pemex Green

Phase:	Single
Input Voltage:	480
Output Voltage:	120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

MLC-20WCIX015
3PH, 15kVA 208V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SVR-12NBSN015
1PH, 15kVA 120V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	15
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-11%, +/-1%

SVR-12NBSN015R
1PH, 15kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	15
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+7%/-11%, +/-1%

MLC-42WCIX015
3PH, 15kVA 480V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SVR-24HBSN015
1PH, 15kVA 240V Stepper Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	15
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+6%/-10%, +/-1%

SVR-24HBSN015R
1PH, 15kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	0-19
Max kVA:	15
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+6%/-10%, +/-1%

MLC-48WCIX015
3PH, 15kVA 480V to 480Y/277V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20GCIY015
3PH, 15kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-20%, +/-1%

MVR-20WCIY015
3PH, 15kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-21WASN015
1PH, 15kVA 240V to 120/240V MP Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

MVR-38WDIY015
3PH, 15kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	0-19
Max kVA:	15
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-40WCIY015
3PH, 15kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	0-19
Max kVA:	15
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-12WASN017
1PH, 17kVA 120V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	17
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-12WBSN017
1PH, 17kVA 120V to 120V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	17
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-12WASN017
1PH, 17kVA 120V MP Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	17
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

SVR-12FASN019R
1PH, 19kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	0-19
Max kVA:	19
Rack Mountable:	Rack Mount
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+5%/-10%, +/-1%

AVR-24WBSN020
1PH, 20kVA 240V to 240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	20-75
Max kVA:	20
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

SCI-41WASN020-P
1PH, 20kVA 480V to 120V AVR, Pemex Green

Phase:	Single
Input Voltage:	480
Output Voltage:	120
kVA Range:	20-75
Max kVA:	20
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

AVR-12WASN025
1PH, 25kVA 120V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-21WASN025
1PH, 25kVA 240V to 120/240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

AVR-24WASN025
1PH, 25kVA 240V to 240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-12WASN025
1PH, 25kVA 120V Power Line Conditioner

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-20WASN025
1PH, 25kVA 208V Power Line Conditioner

Phase:	Single
Input Voltage:	208
Output Voltage:	208
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-25WBSN025
1PH, 25kVA 220V to 220V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	220
Output Voltage:	220
kVA Range:	20-75
Max kVA:	25
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-20WCSX025
3PH, 25kVA 208V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-21WASN025
1PH, 25kVA 240V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-21WBSN025
1PH, 25kVA 240V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	25
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-40WDSY025-T
3PH, 25kVA 400Y/230V to 400Y/230V Auto Voltage Reg, w/ SPD

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	25
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48WASN025
1PH, 25kVA 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-41WASN025
1PH, 25kVA 480V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-21TAIN025
1PH, 25kVA 240V to 240V MP Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-24WASN025
1PH, 25kVA 240V to 240V MP Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-41QASN025-T
1PH, 25kVA 480V to 120/240V MP Voltage Regulator, w/ SPD

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	25
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1%
Extras:	Isolation Transformer

AVR-24WBSN026
1PH, 26kVA 240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	20-75
Max kVA:	26
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-24WBSN026
1PH, 26kVA 240V MP Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	20-75
Max kVA:	26
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-23WCSD028
3PH, 28kVA 230V to 230V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	230
Input Configuration:	Delta
Output Voltage:	230
kVA Range:	20-75
Max kVA:	28
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-20WCSY030
3PH, 30kVA 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-24WCSD030
3PH, 30kVA 240V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-20WCSX030
3PH, 30kVA 208V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-38WDSY030
3PH, 30kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	30
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-40WDSX030
3PH, 30kVA 400V to 400Y/230V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	400
Input Configuration:	Delta
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	30
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48WCSD030
3PH, 30kVA 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-42WCSX030
3PH, 30kVA 480V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSY030
3PH, 30kVA 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-48WCSX030
3PH, 30kVA 480V to 480Y/277V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

SCI-41WASN030-P
1PH, 30kVA 480V to 120V AVR, Pemex Green

Phase:	Single
Input Voltage:	480
Output Voltage:	120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

MLC-20WCIX030
3PH, 30kVA 208V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-42WCIX030
3PH, 30kVA 480V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-48WCIX030
3PH, 30kVA 480V to 480Y/277V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20TCIY030-UPS
3PH, 30kVA 208Y/120V MP Voltage Reg, w/ UPS Soft Start

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-20VCIY030
3PH, 30kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

MVR-20WCIY030
3PH, 30kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-22WCIX030
3PH, 30kVA 240V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-24WCID030
3PH, 30kVA 240V MP Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	20-75
Max kVA:	30
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38WDIY030
3PH, 30kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	30
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-40ZDIY030
3PH, 30kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	30
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-15%, +/-1%

AVR-24WASN037
1PH, 37.5kVA 240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	20-75
Max kVA:	37.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-21WASN037
1PH, 37.5kVA 240V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	37.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-41WASN037
1PH, 37.5kVA 480V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	37.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-21QBSN037
1PH, 37kVA 240V to 120/240V MP Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	37
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1%
Extras:	Isolation Transformer

MVR-24WASN037
1PH, 37.5kVA 240V MP Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	20-75
Max kVA:	37.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-40VDIY037
3PH, 37kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	37
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

AVR-21UASN040
1PH, 40kVA 240V to 120/240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	40
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+27%/-35%, +/-1%
Extras:	Isolation Transformer

AVR-48WASN040
1PH, 40kVA 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	20-75
Max kVA:	40
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	10%/-20%+-1%

SCI-40WCSX040-P
3PH, 40kVA 400V to 400Y/230V AVR, Pemex Green

Phase:	Three
Input Voltage:	400
Input Configuration:	Delta
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	40
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-20WCSY045
3PH, 45kVA 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCID045
3PH, 45kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCID045-MP
3PH, 45kVA 480V MP Voltage Reg, w/ Dig Power Meter (OP)

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCIY045
3PH, 45kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCIY045-T
3PH, 45kVA 480Y/277V to 480Y/277V MP Voltage Regulator, w/ SPD

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-24WCSD045
3PH, 45kVA 240V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-20WCSX045
3PH, 45kVA 208V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-38GDSY045
3PH, 45kVA 380Y/220V to 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	45
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+/-20%, +/-1%

AVR-38WDSY045
3PH, 45kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	45
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48WCSD045
3PH, 45kVA 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-42WCSX045
3PH, 45kVA 480V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSY045
3PH, 45kVA 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-48WCSX045
3PH, 45kVA 480V to 480Y/277V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-20WCIX045
3PH, 45kVA 208V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-42WCIX045
3PH, 45kVA 480V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-48WCIX045
3PH, 45kVA 480V to 480Y/277V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-83WCIY045
3PH, 45kVA 480V to 400Y/230V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20WCIY045
3PH, 45kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-24WCID045
3PH, 45kVA 240V MP Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-24WCIY045
3PH, 45kVA 240Y/138V to 240V MP Voltage Regulator

Phase:	Three
Input Voltage:	240Y/138
Input Configuration:	Wye
Output Voltage:	240Y/138
kVA Range:	20-75
Max kVA:	45
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38WDIY045
3PH, 45kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	45
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-40TDIY045
3PH, 45kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	45
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

AVR-12WASN050
1PH, 50kVA 120V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	120
Output Voltage:	120
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-20WCSY050
3PH, 50kVA 208Y/120V to 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-21WASN050
1PH, 50kVA 240V to 120/240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

AVR-24WASN050
1PH, 50kVA 240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-25WCSY050
3PH, 50kVA 220Y/127 to 220Y/127V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	220Y/127
Input Configuration:	Wye
Output Voltage:	220Y/127
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-21WASN050
1PH, 50kVA 240V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-22WASN050
1PH, 50kVA 208V to 208V Power Line Conditioner

Phase:	Single
Input Voltage:	208
Output Voltage:	208
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-41WASN050-MADPS
1PH, 50kVA 480V to 120/240V Automatic Voltage Reg, w Dig AMM

Phase:	Single
Input Voltage:	480
Output Voltage:	120
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

AVR-48WASN050
1PH, 50kVA 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-41WASN050
1PH, 50kVA 480V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20JCIY050-T
3PH, 50kVA 208Y/120V to 208Y/120V MP Voltage Regulator, w/ SPD

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	50
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+20%/-10%, +/-1%

AVR-24WCSD054
3PH, 54kVA 240V to 240V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	20-75
Max kVA:	54
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-20QCIY054
3PH, 54kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	54
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1%

MVR-20TCIY054
3PH, 54kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	54
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-38WDIY060-O
3PH, 60kVA 380Y/220V to 380Y/220V MP Voltage Reg, w OP Cont

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	60
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38TDIY066
3PH, 66kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	66
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

AVR-20QCSY075
3PH, 75kVA 208Y/120V to 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+/-10%, +/-1%

AVR-20WCSY075
3PH, 75kVA 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-48WASN075
1PH, 75kVA 480V MP Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCID075
3PH, 75kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-21WASN075
1PH, 75kVA 240V to 120/240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

MVR-48WCIY075
3PH, 75kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-83WCIX075
3PH, 75kVA 480V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-24WCSD075
3PH, 75kVA 240V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-20WCSX075
3PH, 75kVA 208V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-38WDSY075
3PH, 75kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	75
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-38ZDSY075
3PH, 75kVA 380Y/220V to 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	75
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+/-15%, +/-1%

AVR-40WDSY075
3PH, 75kVA 415Y/240V to 400Y/230V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	415Y/240
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	75
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-39WCSX075
3PH, 75kVA 380V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WASN075
1PH, 75kVA 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-41WASN075
1PH, 75kVA 480V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSD075
3PH, 75kVA 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-42WCSX075
3PH, 75kVA 480V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSY075
3PH, 75kVA 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-48WCSX075
3PH, 75kVA 480V to 480Y/277V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-48WDSX075
3PH, 75kVA 480V to 480Y/277V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	75
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-20WCIX075
3PH, 75kVA 208V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-42WCIX075
3PH, 75kVA 480V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-48WCIX075
3PH, 75kVA 480V to 480Y/277V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-50GCSX075
3PH, 75kVA 220V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	220
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20ECIY075
3PH, 75kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+5%/-5%, +/-1%

MVR-20LCIY075-P-3R
3PH, 75kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Rack Mountable:	Rack Mount
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+30%/-20%, +/-1%

MVR-20VCIY075
3PH, 75kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

MVR-20WCIY075
3PH, 75kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-21WASN075
1PH, 75kVA 240V to 120/240V MP Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

MVR-22WCIY075-B
3PH, 75kVA 220Y/127V to 208Y/120V MP Voltage Reg, Internal MBS

Phase:	Three
Input Voltage:	220Y/127
Input Configuration:	Wye
Output Voltage:	220Y/127
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-24WCID075
3PH, 75kVA 240V MP Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	20-75
Max kVA:	75
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38WDIY075
3PH, 75kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	20-75
Max kVA:	75
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-40TDIY075
3PH, 75kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	20-75
Max kVA:	75
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48QCIY083
3PH, 83kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	83
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48TCIY083
3PH, 83kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	83
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48WASN100
1PH, 100kVA 480V MP Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	76-150
Max kVA:	100
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-24WASN100-T
1PH, 100kVA 240V to 240V Automatic Voltage Regulator, w/ SPD

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	76-150
Max kVA:	100
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48QASN100
1PH, 100kVA 480V to 480V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	480
Output Voltage:	480
kVA Range:	76-150
Max kVA:	100
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+/-10%, +/-1%

PLC-41QBSN100
1PH, 100kVA 480V to 120/240V Power Line Conditioner

Phase:	Single
Input Voltage:	480
Output Voltage:	120/240
kVA Range:	76-150
Max kVA:	100
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+/-10%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20GCIY100
3PH, 100kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	100
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-20%, +/-1%

MVR-21WASN100
1PH, 100kVA 240V to 120/240V MP Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	120/240
kVA Range:	76-150
Max kVA:	100
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Isolation Transformer

MVR-40TDID104
3PH, 104kVA 400V to 400V MP Voltage Regulator

Phase:	Three
Input Voltage:	400
Input Configuration:	Delta
Output Voltage:	400
kVA Range:	76-150
Max kVA:	104
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-40VDIY104
3PH, 104kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	76-150
Max kVA:	104
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

MVR-20VCIY108
3PH, 108kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	108
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

AVR-20WCSY112
3PH, 112.5kVA 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-20WDSY112
3PH, 112.5kVA 208Y/120V to 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	112.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCID112
3PH, 112.5kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCIY112
3PH, 112.5kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-24WCSD112
3PH, 112.5kVA 240V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-20WCSX112
3PH, 112.5kVA 208V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-38WDSY112
3PH, 112.5kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	112.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-22WCSX060
3PH, 112.5kVA 240V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48GCSY112-O
3PH, 112.5kVA 480Y/277V Automatic Voltage Reg, w/ OP Contactor

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+/-20%, +/-1%

PLC-38QDSX112
3PH, 112kVA 380V to 380Y/220V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	112
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+/-10%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48QCSD112
3PH, 112.5kVA 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+/-10%, +/-1V

AVR-48WCSD112-P1
3PH, 112.5kVA 480V to 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-42WCSX112
3PH, 112.5kVA 480V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSY112
3PH, 112.5kVA 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-48WCSX112
3PH, 112.5kVA 480V to 480Y/277V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-20WCIX112
3PH, 112.5kVA 208V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-42WCIX112
3PH, 112.5kVA 480V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-48WCIX112
3PH, 112.5kVA 480V to 480Y/277V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20VCIY112
3PH, 112.5kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

MVR-20WCIY112
3PH, 112.5kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-24WCID112
3PH, 112.5kVA 240V MP Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	76-150
Max kVA:	112.5
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-25WCID112
3PH, 112kVA 220V to 220V MP Voltage Regulator

Phase:	Three
Input Voltage:	220
Input Configuration:	Delta
Output Voltage:	220
kVA Range:	76-150
Max kVA:	112
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38WDIY112
3PH, 112.5kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	112.5
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48VCIY125
3PH, 125kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	125
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1V

MVR-40TDIY125
3PH, 125kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	76-150
Max kVA:	125
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48QCID125
3PH, 125kVA 480V to 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	76-150
Max kVA:	125
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1%

MVR-48QCIY125
3PH, 125kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	125
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1%

MVR-48TCID125
3PH, 125kVA 480V to 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	76-150
Max kVA:	125
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48TCIY125
3PH, 125kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	125
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

PLC-38WCSX136
3PH, 136kVA 380V to 380Y/220V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	136
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-48QCID138
3PH, 138kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	76-150
Max kVA:	138
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48QCIY138
3PH, 138kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	138
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-40VDIY139
3PH, 139kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	76-150
Max kVA:	139
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

MVR-20QCIY144
3PH, 144kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	144
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1%

MVR-48VCIY150-MAD
3PH, 150kVA 480Y/277V MP Voltage Reg, w/ Dig Ammeter (OP)

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

AVR-20WCSY150
3PH, 150kVA 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCID150-T
3PH, 150kVA 480V to 480V MP Voltage Regulator, w/ SPD

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCIY150
3PH, 150kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-24WASN150
1PH, 150kVA 240V Automatic Voltage Regulator

Phase:	Single
Input Voltage:	240
Output Voltage:	240
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCSY150
3PH, 150kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-24WCSD150
3PH, 150kVA 240V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-38TDSY150
3PH, 150kVA 380Y/220V to 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	150
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-15%, +/-1%

PLC-20WCSX150
3PH, 150kVA 208V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-38WDSY150
3PH, 150kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	150
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-38WCSX150
3PH, 150kVA 380V to 380Y/220V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

PLC-39WCSX150
3PH, 150kVA 380V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSD150
3PH, 150kVA 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-42WCSX150
3PH, 150kVA 480V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSY150
3PH, 150kVA 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-48WCSX150
3PH, 150kVA 480V to 480Y/277V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-20WCIX150
3PH, 150kVA 208V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	208
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-42WCIX150
3PH, 150kVA 480V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-45ZCIX150
3PH, 150kVA 480V to 220Y/127V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	220Y/127
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-15%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-48WCIX150
3PH, 150kVA 480V to 480Y/277V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-48WCIX150-A2A6LS1O
3PH, 150kVA 480V to 480Y/277V MP Line Cond, w/ multiple options

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-50GCSX150
3PH, 150kVA 220V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	220
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20WCIY150
3PH, 150kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-20WCIY150-A2TPS-3R
3PH, 150kVA 208Y/120V MP Voltage Reg, w/ multiple options

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Rack Mountable:	Rack Mount
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-20WCIY150-A2TPS-3R-H
3PH, 150kVA 208Y/120V MP Voltage Reg, w/ multiple options

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	76-150
Max kVA:	150
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38TDIY150
3PH, 150kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	150
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-38VDIY150
3PH, 150kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	150
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

MVR-38WDIY150
3PH, 150kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	76-150
Max kVA:	150
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48VCID166
3PH, 166kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	166
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1V

MVR-48VCIY166
3PH, 166kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	166
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1V

AVR-48TCSY166
3PH, 166kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	166
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-15%, +/-1%

MVR-48QCID166
3PH, 166kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	166
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48QCIY166
3PH, 166kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	166
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48TCID166
3PH, 166kVA 480V to 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	166
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48TCIY166
3PH, 166kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	166
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MLC-40ZDIX180
3PH, 180kVA 415V to 415Y/240V MP Line Conditioner

Phase:	Three
Input Voltage:	415
Input Configuration:	Delta
Output Voltage:	415Y/240
kVA Range:	151-300
Max kVA:	180
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-15%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-38TDIY200
3PH, 200kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	151-300
Max kVA:	200
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48VCIY225-MAD
3PH, 225kVA 480Y/277V MP Voltage Reg, w/ Dig Ammeter (OP)

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

AVR-20WCSY225
3PH, 225kVA 208Y/120V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCIY225
3PH, 225kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-24WCSD225
3PH, 225kVA 240V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-3414
3PH, Custom 225kVA 480V to 480V Auto Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+5%/-25%

AVR-38WDSY225
3PH, 225kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	151-300
Max kVA:	225
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-39WCSX225
3PH, 225kVA 380V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSD225-3R
3PH, 225kVA 480V to 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	225
Rack Mountable:	Rack Mount
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-42WCSX225
3PH, 225kVA 480V to 208Y/120V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSY225
3PH, 225kVA 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-48WCSX225
3PH, 225kVA 480V to 480Y/277V Power Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48XCSD225-4
3PH, 225kVA 480V to 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+25%/-30%, +/-1%

FVR-48WCSD225
3PH, 225kVA 480V Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

FVR-49WCSY225
3PH, 225kVA 208Y/120V to 480Y/277V Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MLC-42WCIX225
3PH, 225kVA 480V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-48WCIX225
3PH, 225kVA 480V to 480Y/277V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-50GCSX225
3PH, 225kVA 220V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	220
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-20WCIY225
3PH, 225kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-20WCIY225-A2TPS-3R
3PH, 225kVA 208Y/120V MP Voltage Reg, w/ multiple options

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	151-300
Max kVA:	225
Rack Mountable:	Rack Mount
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-24WCID225
3PH, 225kVA 240V MP Voltage Regulator

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	151-300
Max kVA:	225
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38WDIY225
3PH, 225kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	151-300
Max kVA:	225
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38WDIY225-TMPIOPSO
3PH, 225kVA 380Y/220V MP Voltage Reg, w/ multiple options

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	151-300
Max kVA:	225
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48TCIY249
3PH, 249kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	249
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48VCID249
3PH, 249kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	249
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1V

MVR-48VCIY249
3PH, 249kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	249
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1V

AVR-48TCSD249
3PH, 249kVA 480V to 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	249
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-15%, +/-1%

MVR-48QCIY249
3PH, 249kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	249
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48TCID249
3PH, 249kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	249
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1V

FVR-40WDSD250
3PH, 250kVA 400V to 400V Voltage Regulator

Phase:	Three
Input Voltage:	400
Input Configuration:	Delta
Output Voltage:	400
kVA Range:	151-300
Max kVA:	250
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

FVR-40WDSY250
3PH, 250kVA 400Y/230V to 400Y/230V Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	151-300
Max kVA:	250
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MLC-40ZDIX250
3PH, 250kVA 415V to 415Y/240V MP Line Conditioner

Phase:	Three
Input Voltage:	415
Input Configuration:	Delta
Output Voltage:	415Y/240
kVA Range:	151-300
Max kVA:	250
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-15%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-38MDIY296
3PH, 296kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	151-300
Max kVA:	296
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-10%, +/-1%

MVR-48VCIY300-MAD
3PH, 300kVA 480Y/277V MP Voltage Reg, w/ Dig Ammeter (OP)

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	300
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

MVR-48WCID300
3PH, 300kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	300
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCIY300
3PH, 300kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	300
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-38WDSY300
3PH, 300kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	151-300
Max kVA:	300
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

PLC-33WCSX300
3PH, 300kVA 380V to 440Y/+254V Power Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	440Y/254
kVA Range:	151-300
Max kVA:	300
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

AVR-48WCSD300
3PH, 300kVA 480V to 480V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	300
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48WCSY300-PH-3R-H
3PH, 300kVA 480Y/277V Automatic Voltage Reg, w/ 65kAIC breaker

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	300
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48WCSY300-TPS
3PH, 300kVA 480Y/277V to 480Y/277V Auto Voltage Reg, w/ SPD

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	151-300
Max kVA:	300
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

FVR-48WCSD300
3PH, 300kVA 480V to 480V Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	151-300
Max kVA:	300
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-20WCIY300
3PH, 300kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	151-300
Max kVA:	300
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38WDIY300
3PH, 300kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	151-300
Max kVA:	300
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38WDIY300-TMPIOPSO
3PH, 300kVA 380Y/220V MP Voltage Reg, w/ multiple options

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	151-300
Max kVA:	300
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-40TDIY300
3PH, 300kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	151-300
Max kVA:	300
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48VCIY333
3PH, 333kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	333
Max kVA:	333
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1V

MVR-48QCID333
3PH, 333kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	333
Max kVA:	333
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48QCIY333
3PH, 333kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	333
Max kVA:	333
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48TCID333
3PH, 333kVA 480V to 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	333
Max kVA:	333
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

AVR-38WDSY400
3PH, 400kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	400
Max kVA:	400
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48WCSY400
3PH, 400kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	400
Max kVA:	400
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MVR-20WCIY400
3PH, 400kVA 208Y/120V MP Voltage Regulator

Phase:	Three
Input Voltage:	208Y/120
Input Configuration:	Wye
Output Voltage:	208Y/120
kVA Range:	400
Max kVA:	400
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-24QCID400-MAD
3PH, 400kVA 240V to 240V MP Voltage Regulator, w/ Digital Ammeter

Phase:	Three
Input Voltage:	240
Input Configuration:	Delta
Output Voltage:	240
kVA Range:	400
Max kVA:	400
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1%

MVR-38WDIY400
3PH, 400kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	400
Max kVA:	400
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48TCIY416
3PH, 416kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	416
Max kVA:	416
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-40WDIY416
3PH, 416kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	416
Max kVA:	416
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48QCIY416
3PH, 416kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	416
Max kVA:	416
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48TCID416
3PH, 416kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	416
Max kVA:	416
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1V

MVR-48TCIY500
3PH, 500kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48WCIY500
3PH, 500kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

AVR-38WDSY500
3PH, 500kVA 380Y/220V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	500
Max kVA:	500
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

AVR-48WCSY500
3PH, 500kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control:	Single Line Control
Input Range:	+10%/-20%, +/-1%

MLC-38WDIX500
3PH, 500kVA 380V to 380Y/220V MP Line Conditioner

Phase:	Three
Input Voltage:	380
Input Configuration:	Delta
Output Voltage:	380Y/220
kVA Range:	500
Max kVA:	500
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MLC-42WCIX500
3PH, 500kVA 480V to 208Y/120V MP Line Conditioner

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	208Y/120
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Line Conditioner
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%
Extras:	Output SPD, Isolation Transformer

MVR-3412
3PH, Custom 500kVA 480Y/277V to 480V Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%

MVR-38WDIY500
3PH, 500kVA 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	500
Max kVA:	500
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-38XDIY500-3R
3PH, 500kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase:	Three
Input Voltage:	380Y/220
Input Configuration:	Wye
Output Voltage:	380Y/220
kVA Range:	500
Max kVA:	500
Rack Mountable:	Rack Mount
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+25%/-30%, +/-1%

MVR-48JCID500
3PH, 500kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+20%/-10%, +/-1%

MVR-48QCID500
3PH, 500kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48QCIY500
3PH, 500kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48QCIY500-LS1
3PH, 500kVA 480Y/277V to 480Y/279V MP Voltage Regulator, Custom

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/279
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48TCID500
3PH, 500kVA 480V to 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	500
Max kVA:	500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48TCIY582
3PH, 582kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	582
Max kVA:	582
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1%

MVR-48QCIY582
3PH, 582kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	582
Max kVA:	582
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

MVR-48TCID582
3PH, 582kVA 480V MP Voltage Regulator

Phase:	Three
Input Voltage:	480
Input Configuration:	Delta
Output Voltage:	480
kVA Range:	582
Max kVA:	582
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1V

MVR-40WDIY600
3PH, 600kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	600
Max kVA:	600
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48TCIY665
3PH, 665kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	665
Max kVA:	665
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-15%, +/-1V

MVR-48VCIY665-T
3PH, 665kVA 480Y/277V to 480Y/277V MP Voltage Regulator, w/ SPD

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	665
Max kVA:	665
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+15%/-30%, +/-1%

MVR-48WCIY750
3PH, 750kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	750
Max kVA:	750
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48QCIY750-3R
3PH, 750kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	750
Max kVA:	750
Rack Mountable:	Rack Mount
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1%

MVR-48WCIY800-T
3PH, 800kVA 480Y/277V to 480Y/277V MP Voltage Regulator, w/ SPD

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	800
Max kVA:	800
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-40WDIY870
3PH, 870kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase:	Three
Input Voltage:	400Y/230
Input Configuration:	Wye
Output Voltage:	400Y/230
kVA Range:	870
Max kVA:	870
Frequency:	50 Hz Compatible
Frequency (Hz):	50/60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCIY1000
3PH, 1000kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	1000
Max kVA:	1000
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48WCIY1000-T
3PH, 1000kVA 480Y/277V to 480Y/277V MP Voltage Regulator, w/ SPD

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	1000
Max kVA:	1000
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+10%/-20%, +/-1%

MVR-48ECIY1000
3PH, 1000kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	1000
Max kVA:	1000
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+5%/-5%, +/-1%

MVR-48QCIY1500
3PH, 1500kVA 480Y/277V MP Voltage Regulator

Phase:	Three
Input Voltage:	480Y/277
Input Configuration:	Wye
Output Voltage:	480Y/277
kVA Range:	1500
Max kVA:	1500
Frequency (Hz):	60
Type:	Voltage Regulator
Controller:	Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control:	Individual Phase Control
Input Range:	+/-10%, +/-1V

Warranty

StacoAVR Warranty

Choose Your Location

Find a distributor in your area.
