Staco Energy Products Co.

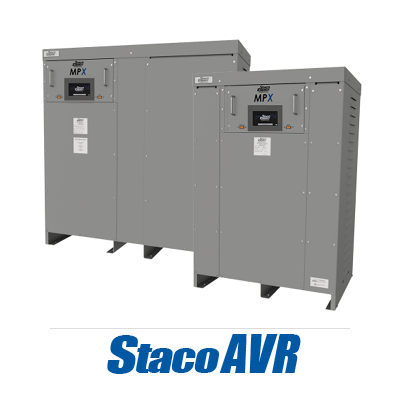

StacoAVR

Electro-Mechanical 120-600 Volt, up to 2000 kVA
Microprocessor controlled series regulation variable transformer topology designed with optional power conditioning elements including noise attenuation and SPD filters with 3-30 second full correction time.

Voltage Regulation & Power Conditioning

Problem: The quality of today's electrical power has become a major operating concern, especially for newer, high-tech equipment. Filters, surge suppressors and isolation transformers can solve many electrical problems. However, each sacrifices benefits if applied as a stand-alone solution.

Solution: When surge suppressors and isolation transformers are combined with a voltage regulator, such as one of our series of power line conditioners, the results provide an ideal solution to these power quality problems.

Our voltage regulators maintain a constant output voltage within ±1% or better, regardless of input voltage variations from +10% to-20% of the nominal input value in standard models. They are also designed and rated to meet standard industry kVA ratings for maximum application compatibility with both new and existing installations.

Their performance is guaranteed under all power factor conditions. It doesn't matter if the connected load is capacitive, resistive or inductive.

Staco Energy Products Co.'s voltage regulators are designed with maximum safety, ease of installation and efficiency in mind. Each model features a modular design, front accessibility and an enclosed, indoor, ventilated, drip-proof enclosure.



  • Construcción modular para una fácil personalización
  • Las opciones ofrecen más características y funcionalidad
  • Muy bajo coste de propiedad gracias a la eficiencia y el funcionamiento prácticamente libre de mantenimiento
  • Funcionamiento sin problemas con ningún dispositivo de activos en ruta de alimentación
  • 1% o mejor regulación de voltaje de salida
  • Regulación no crudo regulación escalón de tensión continua
  • Redundante, control de regulación manual (subida / bajada)
  • Bobina de protección individual-evitar fallos en cascada catastróficos
  • Oro contactos en todas las bobinas plateado
  • Niquelado barra de distribución de cobre
  • Fácil acceso, el panel frontal para el servicio / instalación
  • No hay forma de onda de distorsión no-armónicos añadidos
  • Ocupa poco espacio
  • Capaz de soportar la vibración continua de las aplicaciones móviles
  • Broadcast
  • Comercial
  • Industrial
  • Marina
  • Médico
  • Móvil

SVR-12WBSN002
1PH, 2.5kVA 120V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 2.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-12WBSN002R
1PH, 2.5kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 2.5
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-21WBSN002
1PH, 2.5kVA 240V to 120/240V Stepper Auto Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 2.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

SVR-24WBSN002
1PH, 2.5kVA 240V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 2.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-24WBSN002R
1PH, 2.5kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 2.5
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-12WBSN002
1PH, 2.5kVA 120V to 120V MP Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 2.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-48WASN002
1PH, 2.5kVA 480V to 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 0-19
Max kVA: 2.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SLC-12WBSN002-3PN
1PH, 2.5kVA 120V to 120V Stepper Line Cond, cord and plug

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 2.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SVR-12WBSN003
1PH, 3kVA 120V to 120V Stepper Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 3
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SCI-41WASN003-P
1PH, 3kVA 480V to 120V AVR, Pemex Green

Phase: Single
Input Voltage: 480
Output Voltage: 120
kVA Range: 0-19
Max kVA: 3
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

SVR-12WBSN005
1PH, 5kVA 120V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-12WBSN005R
1PH, 5kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 5
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-21WBSN005
1PH, 5kVA 240V to 120/240V Stepper Auto Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

SVR-24WBSN005
1PH, 5kVA 240V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-24WBSN005R
1PH, 5kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 5
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-41WASN005
1PH, 5kVA 480V to 120/240V Stepper Auto Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

MVR-24WBSN005
1PH, 5kVA 240V to 240V MP Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-48WASN005
1PH, 5kVA 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 0-19
Max kVA: 5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-48WCSY005
3PH, 5kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 0-19
Max kVA: 5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SCI-21WASN005-P
1PH, 5kVA 240V to 120/240V AVR, Pemex Green

Phase: Single
Input Voltage: 240
Output Voltage: 120
kVA Range: 0-19
Max kVA: 5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

SCI-41WASN005-P
1PH, 5kVA 480V to 120V AVR, Pemex Green

Phase: Single
Input Voltage: 480
Output Voltage: 120
kVA Range: 0-19
Max kVA: 5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

SLC-12WBSN005
1PH, 5kVA 120V Stepper Line Conditioner

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SLC-21WBSN005
1PH, 5kVA 240V to 120/240V Stepper Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SVR-12WBSN007
1PH, 7.5kVA 120V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 7.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-12WBSN007R
1PH, 7.5kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 7.5
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-21PBSN007
1PH, 7.5kVA 240V to 120/240V Stepper Auto Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 7.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-17%, +/-1%
Extras: Isolation Transformer

MLC-48WASN007
1PH, 7.5kVA 480V to 480V MP Line Conditioner

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 0-19
Max kVA: 7.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SVR-24PBSN007
1PH, 7.5kVA 240V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 7.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-17%, +/-1%

SVR-24PBSN007R
1PH, 7.5kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 7.5
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-17%, +/-1%

MVR-22WBSN007
1PH, 7.5kVA 208V to 120/240V MP Voltage Regulator

Phase: Single
Input Voltage: 208
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 7.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-12GASN007-D
1PH, 7.5kVA 120V Automatic Voltage Regulator, w/ Dig VM

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 7.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +/-20%, +/-1%

AVR-22WASN007
1PH, 7.5kVA 240V to 208V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 208
kVA Range: 0-19
Max kVA: 7.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-22WBSN007
1PH, 7.5kVA 208V to 120/240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 208
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 7.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-60WASN007
1PH, 7.5kVA 600V to 600V MP Voltage Regulator

Phase: Single
Input Voltage: 600
Output Voltage: 600
kVA Range: 0-19
Max kVA: 7.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

PLC-21WASN007
1PH, 7.5kVA 240V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 7.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WASN007
1PH, 7.5kVA 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 0-19
Max kVA: 7.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-41WASN007
1PH, 7.5kVA 480V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 7.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-60WASN007
1PH, 7.5kVA 600V to 600V Automatic Voltage Regulator

Phase: Single
Input Voltage: 600
Output Voltage: 600
kVA Range: 0-19
Max kVA: 7.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SLC-12WBSN007
1PH, 7.5kVA 120V Stepper Line Conditioner

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 7.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SLC-21PBSN007
1PH, 7.5kVA 240V to 120/240V Stepper Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 7.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-17%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20VCIY009
3PH, 9kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MVR-20WCIY009
3PH, 9kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-24WCID009
3PH, 9kVA 240V MP Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-20WCSY009
3PH, 9kVA 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-24WCSD009
3PH, 9kVA 240V Automatic Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-20WCSX009
3PH, 9kVA 208V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-24WCSD009
3PH, 9kVA 240V to 240V Power Line Conditioner

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-42WCSX009-C1
3PH, 9kVA 480V to 208Y/120V Power Line Cond, w/ what is C1???

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSY009
3PH, 9kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-48WCSX009
3PH, 9kVA 480V to 480Y/277V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-20WCIX009-PS
3PH, 9kVA 208V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 9
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SVR-12PBSN010
1PH, 10kVA 120V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 10
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-17%, +/-1%

SVR-12PBSN010R
1PH, 10kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 10
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-17%, +/-1%

SVR-24NBSN010
1PH, 10kVA 240V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 10
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-11%, +/-1%

SVR-24NBSN010R
1PH, 10kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 10
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-11%, +/-1%

MVR-48GCID010-T
3PH, 10kVA 480V to 480V MP Voltage Regulator, w/ SPD

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 0-19
Max kVA: 10
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-20%, +/-1%

AVR-21WASN010
1PH, 10kVA 240V to 120/240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 10
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

AVR-24WBSN010
1PH, 10kVA 240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 10
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-21WASN010
1PH, 10kVA 240V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 10
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WASN010
1PH, 10kVA 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 0-19
Max kVA: 10
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-41WASN010
1PH, 10kVA 480V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 10
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SCI-41WASN010-P
1PH, 10kVA 480V to 120V AVR, Pemex Green

Phase: Single
Input Voltage: 480
Output Voltage: 120
kVA Range: 0-19
Max kVA: 10
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

AVR-24VASN013
1PH, 13kVA 240V to 240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 13
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +15%/-30%, +/-1%

MLC-42WCIX015
3PH, 15kVA 480V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SVR-24HBSN015
1PH, 15kVA 240V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 15
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +6%/-10%, +/-1%

SVR-24HBSN015R
1PH, 15kVA 240V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 15
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +6%/-10%, +/-1%

MLC-48WCIX015
3PH, 15kVA 480V to 480Y/277V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20GCIY015
3PH, 15kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-20%, +/-1%

MVR-20WCIY015
3PH, 15kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-21WASN015
1PH, 15kVA 240V to 120/240V MP Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

MVR-38WDIY015
3PH, 15kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 0-19
Max kVA: 15
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-40WCIY015
3PH, 15kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-12WBSN015
1PH, 15kVA 120V to 120V Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 15
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-20WCSY015
3PH, 15kVA 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48WCID015
3PH, 15kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-21WASN015
1PH, 15kVA 240V to 120/240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

AVR-24WBSN015
1PH, 15kVA 240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 0-19
Max kVA: 15
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48WCSD015
3PH, 15kVA 480V to 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-24WCSD015
3PH, 15kVA 240V Automatic Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-12WASN015
1PH, 15kVA 120V Power Line Conditioner

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-20WASN015
1PH, 15kVA 208V to 208V Power Line Conditioner

Phase: Single
Input Voltage: 208
Output Voltage: 208
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-20WCSX015
3PH, 15kVA 208V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-38WDSY015
3PH, 15kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 0-19
Max kVA: 15
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-21WASN015
1PH, 15kVA 240V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-22WCSX015
3PH, 15kVA 240V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-26WCSX015
3PH, 15kVA 240V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-32WCSX015
3PH, 15kVA 380V to 220Y/127V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 220Y/127
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-41WASN015-P
1PH, 15kVA 480V to 120/240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

PLC-3487
3PH, Custom 15kVA 480V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-38WCSX015
3PH, 15kVA 380V to 380Y/220V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 380Y/220
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-39WCSX015
3PH, 15kVA 380V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WASN015
1PH, 15kVA 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-41WASN015
1PH, 15kVA 480V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSD015
3PH, 15kVA 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-42WCSX015
3PH, 15kVA 480V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSY015
3PH, 15kVA 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-43WCSX015
3PH, 15kVA 480V to 240Y/138V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 240Y/138
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSY015-LTPS1
Staco AVR 15kVA with options LTPS1

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-48WCSX015
3PH, 15kVA 480V to 480Y/277V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SCI-41WASN015-P
1PH, 15kVA 480V to 120V AVR, Pemex Green

Phase: Single
Input Voltage: 480
Output Voltage: 120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

MLC-20WCIX015
3PH, 15kVA 208V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 0-19
Max kVA: 15
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SVR-12NBSN015
1PH, 15kVA 120V Stepper Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 15
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-11%, +/-1%

SVR-12NBSN015R
1PH, 15kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 15
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +7%/-11%, +/-1%

MVR-12WASN017
1PH, 17kVA 120V MP Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 17
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-12WASN017
1PH, 17kVA 120V Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 17
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-12WBSN017
1PH, 17kVA 120V to 120V Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 17
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SVR-12FASN019R
1PH, 19kVA 120V Stepper Automatic Voltage Regulator, Rack

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 0-19
Max kVA: 19
Rack Mountable: Rack Mount
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +5%/-10%, +/-1%

AVR-24WBSN020
1PH, 20kVA 240V to 240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 20-75
Max kVA: 20
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

SCI-41WASN020-P
1PH, 20kVA 480V to 120V AVR, Pemex Green

Phase: Single
Input Voltage: 480
Output Voltage: 120
kVA Range: 20-75
Max kVA: 20
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

MLC-21TAIN025
1PH, 25kVA 240V to 240V MP Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-24WASN025
1PH, 25kVA 240V to 240V MP Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-41QASN025-T
1PH, 25kVA 480V to 120/240V MP Voltage Regulator, w/ SPD

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1%
Extras: Isolation Transformer

AVR-12WASN025
1PH, 25kVA 120V Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-21WASN025
1PH, 25kVA 240V to 120/240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

AVR-24WASN025
1PH, 25kVA 240V to 240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-12WASN025
1PH, 25kVA 120V Power Line Conditioner

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-20WASN025
1PH, 25kVA 208V Power Line Conditioner

Phase: Single
Input Voltage: 208
Output Voltage: 208
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-25WBSN025
1PH, 25kVA 220V to 220V Automatic Voltage Regulator

Phase: Single
Input Voltage: 220
Output Voltage: 220
kVA Range: 20-75
Max kVA: 25
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-20WCSX025
3PH, 25kVA 208V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-21WASN025
1PH, 25kVA 240V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-21WBSN025
1PH, 25kVA 240V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 25
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-40WDSY025-T
3PH, 25kVA 400Y/230V to 400Y/230V Auto Voltage Reg, w/ SPD

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 25
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-48WASN025
1PH, 25kVA 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-41WASN025
1PH, 25kVA 480V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 25
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-24WBSN026
1PH, 26kVA 240V MP Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 20-75
Max kVA: 26
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-24WBSN026
1PH, 26kVA 240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 20-75
Max kVA: 26
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-23WCSD028
3PH, 28kVA 230V to 230V Automatic Voltage Regulator

Phase: Three
Input Voltage: 230
Input Configuration: Delta
Output Voltage: 230
kVA Range: 20-75
Max kVA: 28
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MLC-42WCIX030
3PH, 30kVA 480V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-48WCIX030
3PH, 30kVA 480V to 480Y/277V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20TCIY030-UPS
3PH, 30kVA 208Y/120V MP Voltage Reg, w/ UPS Soft Start

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-20VCIY030
3PH, 30kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MVR-20WCIY030
3PH, 30kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-22WCIX030
3PH, 30kVA 240V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-24WCID030
3PH, 30kVA 240V MP Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38WDIY030
3PH, 30kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 30
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-40ZDIY030
3PH, 30kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 30
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-15%, +/-1%

AVR-20WCSY030
3PH, 30kVA 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-24WCSD030
3PH, 30kVA 240V Automatic Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-20WCSX030
3PH, 30kVA 208V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-38WDSY030
3PH, 30kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 30
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-40WDSX030
3PH, 30kVA 400V to 400Y/230V Automatic Voltage Regulator

Phase: Three
Input Voltage: 400
Input Configuration: Delta
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 30
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-48WCSD030
3PH, 30kVA 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-42WCSX030
3PH, 30kVA 480V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSY030
3PH, 30kVA 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-48WCSX030
3PH, 30kVA 480V to 480Y/277V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

SCI-41WASN030-P
1PH, 30kVA 480V to 120V AVR, Pemex Green

Phase: Single
Input Voltage: 480
Output Voltage: 120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

MLC-20WCIX030
3PH, 30kVA 208V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 30
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-21QBSN037
1PH, 37kVA 240V to 120/240V MP Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 37
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1%
Extras: Isolation Transformer

MVR-24WASN037
1PH, 37.5kVA 240V MP Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 20-75
Max kVA: 37.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-40VDIY037
3PH, 37kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 37
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

AVR-24WASN037
1PH, 37.5kVA 240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 20-75
Max kVA: 37.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-21WASN037
1PH, 37.5kVA 240V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 37.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-41WASN037
1PH, 37.5kVA 480V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 37.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-21UASN040
1PH, 40kVA 240V to 120/240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 40
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +27%/-35%, +/-1%
Extras: Isolation Transformer

AVR-48WASN040
1PH, 40kVA 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 20-75
Max kVA: 40
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: 10%/-20%+-1%

SCI-40WCSX040-P
3PH, 40kVA 400V to 400Y/230V AVR, Pemex Green

Phase: Three
Input Voltage: 400
Input Configuration: Delta
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 40
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (Stepper)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MLC-42WCIX045
3PH, 45kVA 480V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-48WCIX045
3PH, 45kVA 480V to 480Y/277V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-83WCIY045
3PH, 45kVA 480V to 400Y/230V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20WCIY045
3PH, 45kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-24WCID045
3PH, 45kVA 240V MP Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-24WCIY045
3PH, 45kVA 240Y/138V to 240V MP Voltage Regulator

Phase: Three
Input Voltage: 240Y/138
Input Configuration: Wye
Output Voltage: 240Y/138
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38WDIY045
3PH, 45kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 45
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-40TDIY045
3PH, 45kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 45
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

AVR-20WCSY045
3PH, 45kVA 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48WCID045
3PH, 45kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48WCID045-MP
3PH, 45kVA 480V MP Voltage Reg, w/ Dig Power Meter (OP)

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48WCIY045
3PH, 45kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48WCIY045-T
3PH, 45kVA 480Y/277V to 480Y/277V MP Voltage Regulator, w/ SPD

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-24WCSD045
3PH, 45kVA 240V Automatic Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-20WCSX045
3PH, 45kVA 208V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-38GDSY045
3PH, 45kVA 380Y/220V to 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 45
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +/-20%, +/-1%

AVR-38WDSY045
3PH, 45kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 45
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-48WCSD045
3PH, 45kVA 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-42WCSX045
3PH, 45kVA 480V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSY045
3PH, 45kVA 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-48WCSX045
3PH, 45kVA 480V to 480Y/277V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-20WCIX045
3PH, 45kVA 208V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 45
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20JCIY050-T
3PH, 50kVA 208Y/120V to 208Y/120V MP Voltage Regulator, w/ SPD

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +20%/-10%, +/-1%

AVR-12WASN050
1PH, 50kVA 120V Automatic Voltage Regulator

Phase: Single
Input Voltage: 120
Output Voltage: 120
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-20WCSY050
3PH, 50kVA 208Y/120V to 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-21WASN050
1PH, 50kVA 240V to 120/240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

AVR-24WASN050
1PH, 50kVA 240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-25WCSY050
3PH, 50kVA 220Y/127 to 220Y/127V Automatic Voltage Regulator

Phase: Three
Input Voltage: 220Y/127
Input Configuration: Wye
Output Voltage: 220Y/127
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-21WASN050
1PH, 50kVA 240V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-22WASN050
1PH, 50kVA 208V to 208V Power Line Conditioner

Phase: Single
Input Voltage: 208
Output Voltage: 208
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-41WASN050-MADPS
1PH, 50kVA 480V to 120/240V Automatic Voltage Reg, w Dig AMM

Phase: Single
Input Voltage: 480
Output Voltage: 120
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

AVR-48WASN050
1PH, 50kVA 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-41WASN050
1PH, 50kVA 480V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 50
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20QCIY054
3PH, 54kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 54
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1%

MVR-20TCIY054
3PH, 54kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 54
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

AVR-24WCSD054
3PH, 54kVA 240V to 240V Automatic Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 20-75
Max kVA: 54
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-38WDIY060-O
3PH, 60kVA 380Y/220V to 380Y/220V MP Voltage Reg, w OP Cont

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 60
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38TDIY066
3PH, 66kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 66
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MLC-42WCIX075
3PH, 75kVA 480V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-48WCIX075
3PH, 75kVA 480V to 480Y/277V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-50GCSX075
3PH, 75kVA 220V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 220
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20ECIY075
3PH, 75kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +5%/-5%, +/-1%

MVR-20LCIY075-P-3R
3PH, 75kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Rack Mountable: Rack Mount
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +30%/-20%, +/-1%

MVR-20VCIY075
3PH, 75kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MVR-20WCIY075
3PH, 75kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-21WASN075
1PH, 75kVA 240V to 120/240V MP Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

MVR-22WCIY075-B
3PH, 75kVA 220Y/127V to 208Y/120V MP Voltage Reg, Internal MBS

Phase: Three
Input Voltage: 220Y/127
Input Configuration: Wye
Output Voltage: 220Y/127
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-24WCID075
3PH, 75kVA 240V MP Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38WDIY075
3PH, 75kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 75
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-40TDIY075
3PH, 75kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 75
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

AVR-20QCSY075
3PH, 75kVA 208Y/120V to 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +/-10%, +/-1%

AVR-20WCSY075
3PH, 75kVA 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48WASN075
1PH, 75kVA 480V MP Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48WCID075
3PH, 75kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-21WASN075
1PH, 75kVA 240V to 120/240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

MVR-48WCIY075
3PH, 75kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-83WCIX075
3PH, 75kVA 480V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-24WCSD075
3PH, 75kVA 240V Automatic Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-20WCSX075
3PH, 75kVA 208V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-38WDSY075
3PH, 75kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 75
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-38ZDSY075
3PH, 75kVA 380Y/220V to 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 20-75
Max kVA: 75
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +/-15%, +/-1%

AVR-40WDSY075
3PH, 75kVA 415Y/240V to 400Y/230V Automatic Voltage Regulator

Phase: Three
Input Voltage: 415Y/240
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 20-75
Max kVA: 75
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-39WCSX075
3PH, 75kVA 380V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WASN075
1PH, 75kVA 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-41WASN075
1PH, 75kVA 480V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSD075
3PH, 75kVA 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-42WCSX075
3PH, 75kVA 480V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSY075
3PH, 75kVA 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-48WCSX075
3PH, 75kVA 480V to 480Y/277V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-48WDSX075
3PH, 75kVA 480V to 480Y/277V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 20-75
Max kVA: 75
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-20WCIX075
3PH, 75kVA 208V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 20-75
Max kVA: 75
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-48QCIY083
3PH, 83kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 83
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48TCIY083
3PH, 83kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 83
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-20GCIY100
3PH, 100kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 100
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-20%, +/-1%

MVR-21WASN100
1PH, 100kVA 240V to 120/240V MP Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 120/240
kVA Range: 76-150
Max kVA: 100
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Isolation Transformer

MVR-48WASN100
1PH, 100kVA 480V MP Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 76-150
Max kVA: 100
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-24WASN100-T
1PH, 100kVA 240V to 240V Automatic Voltage Regulator, w/ SPD

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 76-150
Max kVA: 100
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-48QASN100
1PH, 100kVA 480V to 480V Automatic Voltage Regulator

Phase: Single
Input Voltage: 480
Output Voltage: 480
kVA Range: 76-150
Max kVA: 100
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +/-10%, +/-1%

PLC-41QBSN100
1PH, 100kVA 480V to 120/240V Power Line Conditioner

Phase: Single
Input Voltage: 480
Output Voltage: 120/240
kVA Range: 76-150
Max kVA: 100
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +/-10%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-40TDID104
3PH, 104kVA 400V to 400V MP Voltage Regulator

Phase: Three
Input Voltage: 400
Input Configuration: Delta
Output Voltage: 400
kVA Range: 76-150
Max kVA: 104
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-40VDIY104
3PH, 104kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 76-150
Max kVA: 104
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MVR-20VCIY108
3PH, 108kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 108
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MLC-42WCIX112
3PH, 112.5kVA 480V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-48WCIX112
3PH, 112.5kVA 480V to 480Y/277V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20VCIY112
3PH, 112.5kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MVR-20WCIY112
3PH, 112.5kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-24WCID112
3PH, 112.5kVA 240V MP Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-25WCID112
3PH, 112kVA 220V to 220V MP Voltage Regulator

Phase: Three
Input Voltage: 220
Input Configuration: Delta
Output Voltage: 220
kVA Range: 76-150
Max kVA: 112
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38WDIY112
3PH, 112.5kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 112.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-20WCSY112
3PH, 112.5kVA 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-20WDSY112
3PH, 112.5kVA 208Y/120V to 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 112.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48WCID112
3PH, 112.5kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48WCIY112
3PH, 112.5kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-24WCSD112
3PH, 112.5kVA 240V Automatic Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-20WCSX112
3PH, 112.5kVA 208V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-38WDSY112
3PH, 112.5kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 112.5
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-22WCSX060
3PH, 112.5kVA 240V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48GCSY112-O
3PH, 112.5kVA 480Y/277V Automatic Voltage Reg, w/ OP Contactor

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +/-20%, +/-1%

PLC-38QDSX112
3PH, 112kVA 380V to 380Y/220V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 112
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +/-10%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48QCSD112
3PH, 112.5kVA 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +/-10%, +/-1V

AVR-48WCSD112-P1
3PH, 112.5kVA 480V to 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-42WCSX112
3PH, 112.5kVA 480V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSY112
3PH, 112.5kVA 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-48WCSX112
3PH, 112.5kVA 480V to 480Y/277V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-20WCIX112
3PH, 112.5kVA 208V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 112.5
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-40TDIY125
3PH, 125kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 76-150
Max kVA: 125
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48QCID125
3PH, 125kVA 480V to 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 76-150
Max kVA: 125
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1%

MVR-48QCIY125
3PH, 125kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 125
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1%

MVR-48TCID125
3PH, 125kVA 480V to 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 76-150
Max kVA: 125
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48TCIY125
3PH, 125kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 125
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48VCIY125
3PH, 125kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 125
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1V

PLC-38WCSX136
3PH, 136kVA 380V to 380Y/220V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 136
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-48QCID138
3PH, 138kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 76-150
Max kVA: 138
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48QCIY138
3PH, 138kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 138
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-40VDIY139
3PH, 139kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 76-150
Max kVA: 139
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MVR-20QCIY144
3PH, 144kVA 208Y/120V to 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 144
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1%

MLC-42WCIX150
3PH, 150kVA 480V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-45ZCIX150
3PH, 150kVA 480V to 220Y/127V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 220Y/127
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-15%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-48WCIX150
3PH, 150kVA 480V to 480Y/277V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-48WCIX150-A2A6LS1O
3PH, 150kVA 480V to 480Y/277V MP Line Cond, w/ multiple options

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-50GCSX150
3PH, 150kVA 220V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 220
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20WCIY150
3PH, 150kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-20WCIY150-A2TPS-3R
3PH, 150kVA 208Y/120V MP Voltage Reg, w/ multiple options

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Rack Mountable: Rack Mount
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-20WCIY150-A2TPS-3R-H
3PH, 150kVA 208Y/120V MP Voltage Reg, w/ multiple options

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38TDIY150
3PH, 150kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 150
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-38VDIY150
3PH, 150kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 150
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MVR-38WDIY150
3PH, 150kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 150
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48VCIY150-MAD
3PH, 150kVA 480Y/277V MP Voltage Reg, w/ Dig Ammeter (OP)

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

AVR-20WCSY150
3PH, 150kVA 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48WCID150-T
3PH, 150kVA 480V to 480V MP Voltage Regulator, w/ SPD

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48WCIY150
3PH, 150kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-24WASN150
1PH, 150kVA 240V Automatic Voltage Regulator

Phase: Single
Input Voltage: 240
Output Voltage: 240
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48WCSY150
3PH, 150kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-24WCSD150
3PH, 150kVA 240V Automatic Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-38TDSY150
3PH, 150kVA 380Y/220V to 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 150
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-15%, +/-1%

PLC-20WCSX150
3PH, 150kVA 208V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-38WDSY150
3PH, 150kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 150
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-38WCSX150
3PH, 150kVA 380V to 380Y/220V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 380Y/220
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

PLC-39WCSX150
3PH, 150kVA 380V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSD150
3PH, 150kVA 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-42WCSX150
3PH, 150kVA 480V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSY150
3PH, 150kVA 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-48WCSX150
3PH, 150kVA 480V to 480Y/277V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-20WCIX150
3PH, 150kVA 208V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 208
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 76-150
Max kVA: 150
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-48QCID166
3PH, 166kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 166
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48QCIY166
3PH, 166kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 166
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48TCID166
3PH, 166kVA 480V to 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 166
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48TCIY166
3PH, 166kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 166
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48VCID166
3PH, 166kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 166
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1V

MVR-48VCIY166
3PH, 166kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 166
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1V

AVR-48TCSY166
3PH, 166kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 166
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-15%, +/-1%

MLC-40ZDIX180
3PH, 180kVA 415V to 415Y/240V MP Line Conditioner

Phase: Three
Input Voltage: 415
Input Configuration: Delta
Output Voltage: 415Y/240
kVA Range: 151-300
Max kVA: 180
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-15%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-38TDIY200
3PH, 200kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 151-300
Max kVA: 200
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MLC-42WCIX225
3PH, 225kVA 480V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-48WCIX225
3PH, 225kVA 480V to 480Y/277V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-50GCSX225
3PH, 225kVA 220V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 220
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-20WCIY225
3PH, 225kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-20WCIY225-A2TPS-3R
3PH, 225kVA 208Y/120V MP Voltage Reg, w/ multiple options

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 151-300
Max kVA: 225
Rack Mountable: Rack Mount
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-24WCID225
3PH, 225kVA 240V MP Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38WDIY225
3PH, 225kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 151-300
Max kVA: 225
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38WDIY225-TMPIOPSO
3PH, 225kVA 380Y/220V MP Voltage Reg, w/ multiple options

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 151-300
Max kVA: 225
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48VCIY225-MAD
3PH, 225kVA 480Y/277V MP Voltage Reg, w/ Dig Ammeter (OP)

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

AVR-20WCSY225
3PH, 225kVA 208Y/120V Automatic Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48WCIY225
3PH, 225kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-24WCSD225
3PH, 225kVA 240V Automatic Voltage Regulator

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-3414
3PH, Custom 225kVA 480V to 480V Auto Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +5%/-25%

AVR-38WDSY225
3PH, 225kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 151-300
Max kVA: 225
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-39WCSX225
3PH, 225kVA 380V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSD225-3R
3PH, 225kVA 480V to 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 225
Rack Mountable: Rack Mount
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-42WCSX225
3PH, 225kVA 480V to 208Y/120V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSY225
3PH, 225kVA 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-48WCSX225
3PH, 225kVA 480V to 480Y/277V Power Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48XCSD225-4
3PH, 225kVA 480V to 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +25%/-30%, +/-1%

FVR-48WCSD225
3PH, 225kVA 480V Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

FVR-49WCSY225
3PH, 225kVA 208Y/120V to 480Y/277V Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 225
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48QCIY249
3PH, 249kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 249
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48TCID249
3PH, 249kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 249
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1V

MVR-48TCIY249
3PH, 249kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 249
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48VCID249
3PH, 249kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 249
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1V

MVR-48VCIY249
3PH, 249kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 249
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1V

AVR-48TCSD249
3PH, 249kVA 480V to 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 249
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-15%, +/-1%

MLC-40ZDIX250
3PH, 250kVA 415V to 415Y/240V MP Line Conditioner

Phase: Three
Input Voltage: 415
Input Configuration: Delta
Output Voltage: 415Y/240
kVA Range: 151-300
Max kVA: 250
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-15%, +/-1%
Extras: Output SPD, Isolation Transformer

FVR-40WDSD250
3PH, 250kVA 400V to 400V Voltage Regulator

Phase: Three
Input Voltage: 400
Input Configuration: Delta
Output Voltage: 400
kVA Range: 151-300
Max kVA: 250
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

FVR-40WDSY250
3PH, 250kVA 400Y/230V to 400Y/230V Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 151-300
Max kVA: 250
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-38MDIY296
3PH, 296kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 151-300
Max kVA: 296
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-10%, +/-1%

MVR-20WCIY300
3PH, 300kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 151-300
Max kVA: 300
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38WDIY300
3PH, 300kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 151-300
Max kVA: 300
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38WDIY300-TMPIOPSO
3PH, 300kVA 380Y/220V MP Voltage Reg, w/ multiple options

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 151-300
Max kVA: 300
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-40TDIY300
3PH, 300kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 151-300
Max kVA: 300
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48VCIY300-MAD
3PH, 300kVA 480Y/277V MP Voltage Reg, w/ Dig Ammeter (OP)

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 300
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MVR-48WCID300
3PH, 300kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 300
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48WCIY300
3PH, 300kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 300
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-38WDSY300
3PH, 300kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 151-300
Max kVA: 300
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

PLC-33WCSX300
3PH, 300kVA 380V to 440Y/+254V Power Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 440Y/254
kVA Range: 151-300
Max kVA: 300
Frequency (Hz): 60
Type: Line Conditioner
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

AVR-48WCSD300
3PH, 300kVA 480V to 480V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 300
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-48WCSY300-PH-3R-H
3PH, 300kVA 480Y/277V Automatic Voltage Reg, w/ 65kAIC breaker

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 300
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-48WCSY300-TPS
3PH, 300kVA 480Y/277V to 480Y/277V Auto Voltage Reg, w/ SPD

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 151-300
Max kVA: 300
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

FVR-48WCSD300
3PH, 300kVA 480V to 480V Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 151-300
Max kVA: 300
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48QCID333
3PH, 333kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 333
Max kVA: 333
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48QCIY333
3PH, 333kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 333
Max kVA: 333
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48TCID333
3PH, 333kVA 480V to 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 333
Max kVA: 333
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48VCIY333
3PH, 333kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 333
Max kVA: 333
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1V

MVR-20WCIY400
3PH, 400kVA 208Y/120V MP Voltage Regulator

Phase: Three
Input Voltage: 208Y/120
Input Configuration: Wye
Output Voltage: 208Y/120
kVA Range: 400
Max kVA: 400
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-24QCID400-MAD
3PH, 400kVA 240V to 240V MP Voltage Regulator, w/ Digital Ammeter

Phase: Three
Input Voltage: 240
Input Configuration: Delta
Output Voltage: 240
kVA Range: 400
Max kVA: 400
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1%

MVR-38WDIY400
3PH, 400kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 400
Max kVA: 400
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-38WDSY400
3PH, 400kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 400
Max kVA: 400
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-48WCSY400
3PH, 400kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 400
Max kVA: 400
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-40WDIY416
3PH, 416kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 416
Max kVA: 416
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48QCIY416
3PH, 416kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 416
Max kVA: 416
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48TCID416
3PH, 416kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 416
Max kVA: 416
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1V

MVR-48TCIY416
3PH, 416kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 416
Max kVA: 416
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MLC-38WDIX500
3PH, 500kVA 380V to 380Y/220V MP Line Conditioner

Phase: Three
Input Voltage: 380
Input Configuration: Delta
Output Voltage: 380Y/220
kVA Range: 500
Max kVA: 500
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MLC-42WCIX500
3PH, 500kVA 480V to 208Y/120V MP Line Conditioner

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 208Y/120
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Line Conditioner
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%
Extras: Output SPD, Isolation Transformer

MVR-3412
3PH, Custom 500kVA 480Y/277V to 480V Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%

MVR-38WDIY500
3PH, 500kVA 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 500
Max kVA: 500
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-38XDIY500-3R
3PH, 500kVA 380Y/220V to 380Y/220V MP Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 500
Max kVA: 500
Rack Mountable: Rack Mount
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +25%/-30%, +/-1%

MVR-48JCID500
3PH, 500kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +20%/-10%, +/-1%

MVR-48QCID500
3PH, 500kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48QCIY500
3PH, 500kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48QCIY500-LS1
3PH, 500kVA 480Y/277V to 480Y/279V MP Voltage Regulator, Custom

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/279
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48TCID500
3PH, 500kVA 480V to 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48TCIY500
3PH, 500kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-48WCIY500
3PH, 500kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

AVR-38WDSY500
3PH, 500kVA 380Y/220V Automatic Voltage Regulator

Phase: Three
Input Voltage: 380Y/220
Input Configuration: Wye
Output Voltage: 380Y/220
kVA Range: 500
Max kVA: 500
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

AVR-48WCSY500
3PH, 500kVA 480Y/277V to 480Y/277V Automatic Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 500
Max kVA: 500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Analog Input Set Point, Microprocessor (FRC)
Single Line Control / Individual Phase Control: Single Line Control
Input Range: +10%/-20%, +/-1%

MVR-48QCIY582
3PH, 582kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 582
Max kVA: 582
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

MVR-48TCID582
3PH, 582kVA 480V MP Voltage Regulator

Phase: Three
Input Voltage: 480
Input Configuration: Delta
Output Voltage: 480
kVA Range: 582
Max kVA: 582
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1V

MVR-48TCIY582
3PH, 582kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 582
Max kVA: 582
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1%

MVR-40WDIY600
3PH, 600kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 600
Max kVA: 600
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48TCIY665
3PH, 665kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 665
Max kVA: 665
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-15%, +/-1V

MVR-48VCIY665-T
3PH, 665kVA 480Y/277V to 480Y/277V MP Voltage Regulator, w/ SPD

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 665
Max kVA: 665
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +15%/-30%, +/-1%

MVR-48QCIY750-3R
3PH, 750kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 750
Max kVA: 750
Rack Mountable: Rack Mount
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1%

MVR-48WCIY750
3PH, 750kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 750
Max kVA: 750
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48WCIY800-T
3PH, 800kVA 480Y/277V to 480Y/277V MP Voltage Regulator, w/ SPD

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 800
Max kVA: 800
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-40WDIY870
3PH, 870kVA 400Y/230V to 400Y/230V MP Voltage Regulator

Phase: Three
Input Voltage: 400Y/230
Input Configuration: Wye
Output Voltage: 400Y/230
kVA Range: 870
Max kVA: 870
Frequency: 50 Hz Compatible
Frequency (Hz): 50/60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48ECIY1000
3PH, 1000kVA 480Y/277V to 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 1000
Max kVA: 1000
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +5%/-5%, +/-1%

MVR-48WCIY1000
3PH, 1000kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 1000
Max kVA: 1000
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48WCIY1000-T
3PH, 1000kVA 480Y/277V to 480Y/277V MP Voltage Regulator, w/ SPD

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 1000
Max kVA: 1000
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +10%/-20%, +/-1%

MVR-48QCIY1500
3PH, 1500kVA 480Y/277V MP Voltage Regulator

Phase: Three
Input Voltage: 480Y/277
Input Configuration: Wye
Output Voltage: 480Y/277
kVA Range: 1500
Max kVA: 1500
Frequency (Hz): 60
Type: Voltage Regulator
Controller: Digital Input Set Point, Microprocessor (MP)
Single Line Control / Individual Phase Control: Individual Phase Control
Input Range: +/-10%, +/-1V

Análisis de la Competencia

Dibujo

Automatic Voltage Regulator: AVR-12GASN007-DAutomatic Voltage Regulator: AVR-12WASN017Automatic Voltage Regulator: AVR-12WASN025Automatic Voltage Regulator: AVR-12WBSN015Automatic Voltage Regulator: AVR-12WBSN017Automatic Voltage Regulator: AVR-20QCSY075Automatic Voltage Regulator: AVR-20WCSY009Automatic Voltage Regulator: AVR-20WCSY015Automatic Voltage Regulator: AVR-20WCSY030Automatic Voltage Regulator: AVR-20WCSY030-TDAutomatic Voltage Regulator: AVR-20WCSY045Automatic Voltage Regulator: AVR-20WCSY050Automatic Voltage Regulator: AVR-20WCSY075Automatic Voltage Regulator: AVR-20WCSY112Automatic Voltage Regulator: AVR-20WCSY150Automatic Voltage Regulator: AVR-20WCSY150-PAutomatic Voltage Regulator: AVR-20WCSY225Automatic Voltage Regulator: AVR-20WDSY112Automatic Voltage Regulator: AVR-21UASN040Automatic Voltage Regulator: AVR-21WASN010Automatic Voltage Regulator: AVR-21WASN015Automatic Voltage Regulator: AVR-21WASN025Automatic Voltage Regulator: AVR-21WASN050Automatic Voltage Regulator: AVR-21WASN075Automatic Voltage Regulator: AVR-22WASN007Automatic Voltage Regulator: AVR-22WBSN007Automatic Voltage Regulator: AVR-23WCSD028Automatic Voltage Regulator: AVR-24VASN013Automatic Voltage Regulator: AVR-24VASN025Automatic Voltage Regulator: AVR-24WASN025Automatic Voltage Regulator: AVR-24WASN037Automatic Voltage Regulator: AVR-24WASN050Automatic Voltage Regulator: AVR-24WASN100-TAutomatic Voltage Regulator: AVR-24WBSN010Automatic Voltage Regulator: AVR-24WBSN015Automatic Voltage Regulator: AVR-24WBSN020Automatic Voltage Regulator: AVR-24WBSN026Automatic Voltage Regulator: AVR-24WCSD015Automatic Voltage Regulator: AVR-24WCSD030Automatic Voltage Regulator: AVR-24WCSD045Automatic Voltage Regulator: AVR-24WCSD054Automatic Voltage Regulator: AVR-24WCSD075Automatic Voltage Regulator: AVR-25WBSN025Automatic Voltage Regulator: AVR-25WCSY050Automatic Voltage Regulator: AVR-3414Automatic Voltage Regulator: AVR-38GDSY045Automatic Voltage Regulator: AVR-38TDSY150Automatic Voltage Regulator: AVR-38WDSY015Automatic Voltage Regulator: AVR-38WDSY030Automatic Voltage Regulator: AVR-38WDSY045Automatic Voltage Regulator: AVR-38WDSY075Automatic Voltage Regulator: AVR-38WDSY112Automatic Voltage Regulator: AVR-38WDSY150Automatic Voltage Regulator: AVR-38WDSY150-TDAutomatic Voltage Regulator: AVR-38ZDSY075Automatic Voltage Regulator: AVR-40WDSX030Automatic Voltage Regulator: AVR-40WDSY025-TAutomatic Voltage Regulator: AVR-40WDSY075Automatic Voltage Regulator: AVR-41WASN015-PAutomatic Voltage Regulator: AVR-41WASN050-MADPSAutomatic Voltage Regulator: AVR-48GCSY112-OAutomatic Voltage Regulator: AVR-48QASN100Automatic Voltage Regulator: AVR-48QCSD112Automatic Voltage Regulator: AVR-48TCSD249Automatic Voltage Regulator: AVR-48TCSY166Automatic Voltage Regulator: AVR-48WASN002Automatic Voltage Regulator: AVR-48WASN005Automatic Voltage Regulator: AVR-48WASN007Automatic Voltage Regulator: AVR-48WASN010Automatic Voltage Regulator: AVR-48WASN015Automatic Voltage Regulator: AVR-48WASN025Automatic Voltage Regulator: AVR-48WASN040Automatic Voltage Regulator: AVR-48WASN050Automatic Voltage Regulator: AVR-48WASN075Automatic Voltage Regulator: AVR-48WCID045Automatic Voltage Regulator: AVR-48WCSD015Automatic Voltage Regulator: AVR-48WCSD030Automatic Voltage Regulator: AVR-48WCSD045Automatic Voltage Regulator: AVR-48WCSD075Automatic Voltage Regulator: AVR-48WCSD075-OEMAutomatic Voltage Regulator: AVR-48WCSD112-P1Automatic Voltage Regulator: AVR-48WCSD150-P1Automatic Voltage Regulator: AVR-48WCSD225-3RAutomatic Voltage Regulator: AVR-48WCSD300Automatic Voltage Regulator: AVR-48WCSY005Automatic Voltage Regulator: AVR-48WCSY009Automatic Voltage Regulator: AVR-48WCSY015Automatic Voltage Regulator: AVR-48WCSY030Automatic Voltage Regulator: AVR-48WCSY045Automatic Voltage Regulator: AVR-48WCSY075Automatic Voltage Regulator: AVR-48WCSY112Automatic Voltage Regulator: AVR-48WCSY150Automatic Voltage Regulator: AVR-48WCSY225Automatic Voltage Regulator: AVR-48WCSY300-PH-3R-HAutomatic Voltage Regulator: AVR-48WCSY300-TPSAutomatic Voltage Regulator: AVR-48WCSY400Automatic Voltage Regulator: AVR-48WCSY500Automatic Voltage Regulator: AVR-60WASN007Bypass Switch: BCB-T1200Bypass Switch: BCB-T2000Bypass Switch: BCB-T800Bypass Switch: BMB-T100Bypass Switch: BMB-T300Bypass Switch: BMB-T500Bypass Switch: BMB-T65Bypass Switch: BMB-T700Bypass Switch: BMB-T800Bypass Switch: MB-S100Bypass Switch: MB-S200Bypass Switch: MB-S65Bypass Switch: MB-T100-42Bypass Switch: MB-T200Bypass Switch: MB-T400Bypass Switch: MB-T600Bypass Switch: MB-T800Controlador: FRC-20-NEMA-1Controlador: FRC-20-RACKControlador: MPII-NEMA-1Controlador: MPII-RACKFVR Regulator: FVR-40WDSD250FVR Regulator: FVR-40WDSY250FVR Regulator: FVR-48WCSD225FVR Regulator: FVR-48WCSD300FVR Regulator: FVR-49WCSY225MLC Regulator: MLC-20WCIX009-PSMLC Regulator: MLC-20WCIX015MLC Regulator: MLC-20WCIX030MLC Regulator: MLC-20WCIX045MLC Regulator: MLC-20WCIX075MLC Regulator: MLC-20WCIX112MLC Regulator: MLC-20WCIX150MLC Regulator: MLC-21TAIN025MLC Regulator: MLC-38WDIX500MLC Regulator: MLC-40ZDIX180MLC Regulator: MLC-40ZDIX250MLC Regulator: MLC-41WASN075-PMLC Regulator: MLC-41WASN100-PMLC Regulator: MLC-42WCIX015MLC Regulator: MLC-42WCIX030MLC Regulator: MLC-42WCIX030-PMLC Regulator: MLC-42WCIX075MLC Regulator: MLC-42WCIX112MLC Regulator: MLC-42WCIX150MLC Regulator: MLC-42WCIX225MLC Regulator: MLC-42WCIX500MLC Regulator: MLC-45ZCIX075MLC Regulator: MLC-45ZCIX150MLC Regulator: MLC-48WASN007MLC Regulator: MLC-48WASN007MLC Regulator: MLC-48WCIX015MLC Regulator: MLC-48WCIX030MLC Regulator: MLC-48WCIX045MLC Regulator: MLC-48WCIX150MLC Regulator: MLC-48WCIX150-A2A6LS1OMLC Regulator: MLC-48WCIX225MLC Regulator: MLC-50GCSX075MLC Regulator: MLC-50GCSX150MLC Regulator: MLC-50GCSX225MLC Regulator: MLC-83WCIY045MVR Regulator: MVR-12WASN017MVR Regulator: MVR-12WBSN002MVR Regulator: MVR-20ECIY075MVR Regulator: MVR-20GCIY015MVR Regulator: MVR-20GCIY100MVR Regulator: MVR-20JCIY050-TMVR Regulator: MVR-20LCIY075-P-3RMVR Regulator: MVR-20QCIY054MVR Regulator: MVR-20QCIY144MVR Regulator: MVR-20TCIY030-UPSMVR Regulator: MVR-20TCIY054MVR Regulator: MVR-20VCIY009MVR Regulator: MVR-20VCIY030MVR Regulator: MVR-20VCIY075MVR Regulator: MVR-20VCIY108MVR Regulator: MVR-20VCIY112MVR Regulator: MVR-20WCID112-TMVR Regulator: MVR-20WCIY009MVR Regulator: MVR-20WCIY015MVR Regulator: MVR-20WCIY030MVR Regulator: MVR-20WCIY045MVR Regulator: MVR-20WCIY075MVR Regulator: MVR-20WCIY112MVR Regulator: MVR-20WCIY150MVR Regulator: MVR-20WCIY150-4XMVR Regulator: MVR-20WCIY150-A2TPS-3RMVR Regulator: MVR-20WCIY150-A2TPS-3R-HMVR Regulator: MVR-20WCIY150-NEMVR Regulator: MVR-20WCIY225MVR Regulator: MVR-20WCIY225-A2TPS-3RMVR Regulator: MVR-20WCIY300MVR Regulator: MVR-20WCIY400MVR Regulator: MVR-21QBSN037MVR Regulator: MVR-21WASN015MVR Regulator: MVR-21WASN075MVR Regulator: MVR-22WBSN007MVR Regulator: MVR-22WCIX030MVR Regulator: MVR-22WCIY075-BMVR Regulator: MVR-24QCID400-MADMVR Regulator: MVR-24VCID030-ADMVR Regulator: MVR-24VCID060-ADMVR Regulator: MVR-24WASN025MVR Regulator: MVR-24WASN037MVR Regulator: MVR-24WBSN005MVR Regulator: MVR-24WBSN026MVR Regulator: MVR-24WCID009MVR Regulator: MVR-24WCID030MVR Regulator: MVR-24WCID045MVR Regulator: MVR-24WCID045-3RMVR Regulator: MVR-24WCID075MVR Regulator: MVR-24WCID112MVR Regulator: MVR-24WCIY045MVR Regulator: MVR-25WCID112MVR Regulator: MVR-29WASN200MVR Regulator: MVR-29WBSN050-PSMVR Regulator: MVR-3412MVR Regulator: MVR-3601MVR Regulator: MVR-3614MVR Regulator: MVR-3634MVR Regulator: MVR-38MDIY296MVR Regulator: MVR-38TDIY066MVR Regulator: MVR-38TDIY150MVR Regulator: MVR-38TDIY200MVR Regulator: MVR-38VDIY150MVR Regulator: MVR-38WDIY015MVR Regulator: MVR-38WDIY030MVR Regulator: MVR-38WDIY030-TMVR Regulator: MVR-38WDIY045MVR Regulator: MVR-38WDIY060-OMVR Regulator: MVR-38WDIY075MVR Regulator: MVR-38WDIY112MVR Regulator: MVR-38WDIY150MVR Regulator: MVR-38WDIY225MVR Regulator: MVR-38WDIY225-TMPIOPSOMVR Regulator: MVR-38WDIY300-TMPIOPSOMVR Regulator: MVR-38WDIY400MVR Regulator: MVR-38WDIY500MVR Regulator: MVR-38XDIY500-3RMVR Regulator: MVR-40TDID104MVR Regulator: MVR-40TDIY045MVR Regulator: MVR-40TDIY075MVR Regulator: MVR-40TDIY125MVR Regulator: MVR-40TDIY300MVR Regulator: MVR-40VDIY104MVR Regulator: MVR-40VDIY139MVR Regulator: MVR-40WCIY015MVR Regulator: MVR-40WDIY416MVR Regulator: MVR-40WDIY600MVR Regulator: MVR-40WDIY870MVR Regulator: MVR-40ZDIY030MVR Regulator: MVR-41QASN025-TMVR Regulator: MVR-48ECIY1000MVR Regulator: MVR-48GCID010-TMVR Regulator: MVR-48QCID125MVR Regulator: MVR-48QCID138MVR Regulator: MVR-48QCID166MVR Regulator: MVR-48QCID333MVR Regulator: MVR-48QCID500MVR Regulator: MVR-48QCIY083MVR Regulator: MVR-48QCIY125MVR Regulator: MVR-48QCIY138MVR Regulator: MVR-48QCIY1500MVR Regulator: MVR-48QCIY166MVR Regulator: MVR-48QCIY249MVR Regulator: MVR-48QCIY333MVR Regulator: MVR-48QCIY416MVR Regulator: MVR-48QCIY416-3RMVR Regulator: MVR-48QCIY500MVR Regulator: MVR-48QCIY500-TMVR Regulator: MVR-48QCIY500-T-3RMVR Regulator: MVR-48QCIY582MVR Regulator: MVR-48QCIY750-3RMVR Regulator: MVR-48TCID125MVR Regulator: MVR-48TCID166MVR Regulator: MVR-48TCID249MVR Regulator: MVR-48TCID333MVR Regulator: MVR-48TCID416MVR Regulator: MVR-48TCID500MVR Regulator: MVR-48TCID582MVR Regulator: MVR-48TCIY083MVR Regulator: MVR-48TCIY125MVR Regulator: MVR-48TCIY166MVR Regulator: MVR-48TCIY249MVR Regulator: MVR-48TCIY333MVR Regulator: MVR-48TCIY416MVR Regulator: MVR-48TCIY500MVR Regulator: MVR-48TCIY582MVR Regulator: MVR-48TCIY665MVR Regulator: MVR-48TCIY665-3RMVR Regulator: MVR-48VCID083-MADMVR Regulator: MVR-48VCID166MVR Regulator: MVR-48VCID249MVR Regulator: MVR-48VCIY125MVR Regulator: MVR-48VCIY150-MADMVR Regulator: MVR-48VCIY166MVR Regulator: MVR-48VCIY166-TMVR Regulator: MVR-48VCIY225-MADMVR Regulator: MVR-48VCIY249MVR Regulator: MVR-48VCIY300-MADMVR Regulator: MVR-48VCIY333MVR Regulator: MVR-48VCIY665-TMVR Regulator: MVR-48WASN075MVR Regulator: MVR-48WASN100MVR Regulator: MVR-48WASN125-PSMVR Regulator: MVR-48WCID045-MPMVR Regulator: MVR-48WCID075MVR Regulator: MVR-48WCID112MVR Regulator: MVR-48WCID150-TMVR Regulator: MVR-48WCID225-PMVR Regulator: MVR-48WCIY045MVR Regulator: MVR-48WCIY045-TMVR Regulator: MVR-48WCIY1000-TMVR Regulator: MVR-48WCIY112MVR Regulator: MVR-48WCIY112-TMVR Regulator: MVR-48WCIY150MVR Regulator: MVR-48WCIY225MVR Regulator: MVR-48WCIY300MVR Regulator: MVR-48WCIY500MVR Regulator: MVR-48WCIY500-SMVR Regulator: MVR-48WCIY750MVR Regulator: MVR-48WCIY800-TMVR Regulator: MVR-48WCSD015MVR Regulator: MVR-48WCSY150MVR Regulator: MVR-60WASN007MVR Regulator: MVR-83WCIX075MVR Regulator: MVR-WCIY045-TPLC Regulator: PLC-12WASN015PLC Regulator: PLC-20WASN015PLC Regulator: PLC-20WASN025PLC Regulator: PLC-20WCSX009PLC Regulator: PLC-20WCSX015PLC Regulator: PLC-20WCSX025PLC Regulator: PLC-20WCSX030PLC Regulator: PLC-20WCSX045PLC Regulator: PLC-20WCSX045-PPLC Regulator: PLC-20WCSX075PLC Regulator: PLC-20WCSX150PLC Regulator: PLC-21WASN007PLC Regulator: PLC-21WASN010PLC Regulator: PLC-21WASN015PLC Regulator: PLC-21WASN025PLC Regulator: PLC-21WASN037PLC Regulator: PLC-21WASN050PLC Regulator: PLC-21WBSN025PLC Regulator: PLC-22WASN050PLC Regulator: PLC-22WCSX015PLC Regulator: PLC-22WCSX030PLC Regulator: PLC-22WCSX045PLC Regulator: PLC-22WCSX060PLC Regulator: PLC-24WCSD009PLC Regulator: PLC-26WCSX015PLC Regulator: PLC-32WCSX015PLC Regulator: PLC-33WCSX300PLC Regulator: PLC-3487PLC Regulator: PLC-38QDSX112PLC Regulator: PLC-38WCSX015PLC Regulator: PLC-38WCSX136PLC Regulator: PLC-38WCSX150PLC Regulator: PLC-39WCSX075PLC Regulator: PLC-39WCSX150PLC Regulator: PLC-39WCSX225PLC Regulator: PLC-40WCSX037PLC Regulator: PLC-41QBSN100PLC Regulator: PLC-41WASN007PLC Regulator: PLC-41WASN010PLC Regulator: PLC-41WASN015PLC Regulator: PLC-41WASN025PLC Regulator: PLC-41WASN037PLC Regulator: PLC-41WASN050PLC Regulator: PLC-41WASN075PLC Regulator: PLC-42WCSX009-C1PLC Regulator: PLC-42WCSX015PLC Regulator: PLC-42WCSX030PLC Regulator: PLC-42WCSX045PLC Regulator: PLC-42WCSX075PLC Regulator: PLC-42WCSX112PLC Regulator: PLC-42WCSX150PLC Regulator: PLC-42WCSX225PLC Regulator: PLC-43WCSX015PLC Regulator: PLC-48WCSX009PLC Regulator: PLC-48WCSX015PLC Regulator: PLC-48WCSX030PLC Regulator: PLC-48WCSX045PLC Regulator: PLC-48WCSX075PLC Regulator: PLC-48WCSX112PLC Regulator: PLC-48WCSX225PLC Regulator: PLC-48WDSX075PLC Regulator: PLC-48WDSX083SCI Regulator: SCI-21WASN005-PSCI Regulator: SCI-21WASN005-PKSCI Regulator: SCI-21WASN005-PK-GRAYSCI Regulator: SCI-25WASN005-PKSCI Regulator: SCI-25WASN005-PK-GRAYSCI Regulator: SCI-25WASN010-PKSCI Regulator: SCI-25WASN010-PK-GRAYSCI Regulator: SCI-25WASN020-PKSCI Regulator: SCI-25WCSX010-PKSCI Regulator: SCI-25WCSX020-PKSCI Regulator: SCI-25WCSX030-PKSCI Regulator: SCI-40WCSX040-PSCI Regulator: SCI-41WASN003-PSCI Regulator: SCI-41WASN005-PSCI Regulator: SCI-41WASN005-PKSCI Regulator: SCI-41WASN007-PKSCI Regulator: SCI-41WASN010-PSCI Regulator: SCI-41WASN010-PKSCI Regulator: SCI-41WASN015-PSCI Regulator: SCI-41WASN015-PKSCI Regulator: SCI-41WASN020-PSCI Regulator: SCI-41WASN020-PKSCI Regulator: SCI-41WASN030-PSCI Regulator: SCI-41WASN030-PK-GRAYSCI Regulator: SCI-41WASN040-PKSCI Regulator: SCI-42WCSX010-PKSCI Regulator: SCI-42WCSX030-PKSCI Regulator: SCI-45WCSX005-PKSCI Regulator: SCI-45WCSX010-PKSCI Regulator: SCI-45WCSX015-PKSCI Regulator: SCI-45WCSX020-PKSCI Regulator: SCI-45WCSX030-PKSCI Regulator: SCI-45WCSX030-PK-GRAY2SCI Regulator: SCI-45WCSX040-PK-GRAYSCI Regulator: SCI-50WCSX010-PKStepper Power Conditioner: SLC-12WBSN002-3PNStepper Power Conditioner: SLC-12WBSN005Stepper Voltage Regulator: SVR-12FASN019RStepper Voltage Regulator: SVR-12NBSN015Stepper Voltage Regulator: SVR-12NBSN015RStepper Voltage Regulator: SVR-12PBSN010Stepper Voltage Regulator: SVR-12PBSN010RStepper Voltage Regulator: SVR-12WBSN002Stepper Voltage Regulator: SVR-12WBSN002RStepper Voltage Regulator: SVR-12WBSN003Stepper Voltage Regulator: SVR-12WBSN005Stepper Voltage Regulator: SVR-12WBSN005-WVSStepper Voltage Regulator: SVR-12WBSN005RStepper Voltage Regulator: SVR-12WBSN007Stepper Voltage Regulator: SVR-12WBSN007RStepper Voltage Regulator: SVR-21WBSN002Stepper Voltage Regulator: SVR-24HBSN015Stepper Voltage Regulator: SVR-24HBSN015RStepper Voltage Regulator: SVR-24NBSN010Stepper Voltage Regulator: SVR-24NBSN010RStepper Voltage Regulator: SVR-24PBSN007Stepper Voltage Regulator: SVR-24PBSN007-3660Stepper Voltage Regulator: SVR-24PBSN007RStepper Voltage Regulator: SVR-24WBSN002Stepper Voltage Regulator: SVR-24WBSN002RStepper Voltage Regulator: SVR-24WBSN005Stepper Voltage Regulator: SVR-24WBSN005RStepper Voltage Regulator: SVR-41WASN005

Folleto de Producto

Folleto de la Empresa

Garantía

Guía de Especificación

Imprimir imágenes listas y Logos

Manual del Usuario

Manual del Usuario: AVR-12GASN007-DManual del Usuario: AVR-12WASN017Manual del Usuario: AVR-12WASN025Manual del Usuario: AVR-12WBSN015Manual del Usuario: AVR-20QCSY075Manual del Usuario: AVR-20WCSY009Manual del Usuario: AVR-20WCSY015Manual del Usuario: AVR-20WCSY030Manual del Usuario: AVR-20WCSY045Manual del Usuario: AVR-20WCSY050Manual del Usuario: AVR-20WCSY075Manual del Usuario: AVR-20WCSY112Manual del Usuario: AVR-20WCSY150Manual del Usuario: AVR-20WCSY150-PManual del Usuario: AVR-20WCSY225Manual del Usuario: AVR-20WDSY112Manual del Usuario: AVR-21WASN010Manual del Usuario: AVR-21WASN015Manual del Usuario: AVR-21WASN025Manual del Usuario: AVR-21WASN050Manual del Usuario: AVR-22WASN007Manual del Usuario: AVR-22WBSN007Manual del Usuario: AVR-23WCSD028Manual del Usuario: AVR-24VASN013Manual del Usuario: AVR-24VASN025Manual del Usuario: AVR-24WASN025Manual del Usuario: AVR-24WASN037Manual del Usuario: AVR-24WASN050Manual del Usuario: AVR-24WASN100-TManual del Usuario: AVR-24WBSN010Manual del Usuario: AVR-24WBSN015Manual del Usuario: AVR-24WBSN026Manual del Usuario: AVR-24WCSD015Manual del Usuario: AVR-24WCSD030Manual del Usuario: AVR-24WCSD045Manual del Usuario: AVR-24WCSD054Manual del Usuario: AVR-24WCSD075Manual del Usuario: AVR-25WBSN025Manual del Usuario: AVR-25WCSY050Manual del Usuario: AVR-3414Manual del Usuario: AVR-38WDSY015Manual del Usuario: AVR-38WDSY030Manual del Usuario: AVR-38WDSY045Manual del Usuario: AVR-38WDSY075Manual del Usuario: AVR-38WDSY112Manual del Usuario: AVR-38WDSY150Manual del Usuario: AVR-40WDSX030Manual del Usuario: AVR-40WDSY025-TManual del Usuario: AVR-40WDSY075Manual del Usuario: AVR-41WASN015-PManual del Usuario: AVR-41WASN050-MADPSManual del Usuario: AVR-48QCSD112Manual del Usuario: AVR-48WASN002Manual del Usuario: AVR-48WASN005Manual del Usuario: AVR-48WASN007Manual del Usuario: AVR-48WASN010Manual del Usuario: AVR-48WASN025Manual del Usuario: AVR-48WASN040Manual del Usuario: AVR-48WASN050Manual del Usuario: AVR-48WASN075Manual del Usuario: AVR-48WCID045Manual del Usuario: AVR-48WCSD015Manual del Usuario: AVR-48WCSD030Manual del Usuario: AVR-48WCSD045Manual del Usuario: AVR-48WCSD075Manual del Usuario: AVR-48WCSD112-P1Manual del Usuario: AVR-48WCSD150Manual del Usuario: AVR-48WCSD225-3RManual del Usuario: AVR-48WCSD300Manual del Usuario: AVR-48WCSY009Manual del Usuario: AVR-48WCSY015Manual del Usuario: AVR-48WCSY030Manual del Usuario: AVR-48WCSY045Manual del Usuario: AVR-48WCSY075Manual del Usuario: AVR-48WCSY112Manual del Usuario: AVR-48WCSY150Manual del Usuario: AVR-48WCSY225Manual del Usuario: AVR-48WCSY300-PH-3R-HManual del Usuario: AVR-48WCSY300-TPSManual del Usuario: AVR-48WCSY400Manual del Usuario: AVR-48WCSY500Manual del Usuario: AVR-60WASN007Manual del Usuario: FRC-20Manual del Usuario: FVR-40WDSD250Manual del Usuario: FVR-40WDSY250Manual del Usuario: FVR-48WCSD225Manual del Usuario: FVR-48WCSD300Manual del Usuario: FVR-49WCSY225Manual del Usuario: MLC-20WCIX009-PSManual del Usuario: MLC-20WCIX015Manual del Usuario: MLC-20WCIX030Manual del Usuario: MLC-20WCIX045Manual del Usuario: MLC-20WCIX075Manual del Usuario: MLC-20WCIX075Manual del Usuario: MLC-20WCIX112Manual del Usuario: MLC-20WCIX150Manual del Usuario: MLC-38WDIX500Manual del Usuario: MLC-40ZDIX180Manual del Usuario: MLC-40ZDIX250Manual del Usuario: MLC-41WASN075-PManual del Usuario: MLC-41WASN100-PManual del Usuario: MLC-42WCIX015Manual del Usuario: MLC-42WCIX030Manual del Usuario: MLC-42WCIX075Manual del Usuario: MLC-42WCIX150Manual del Usuario: MLC-42WCIX225Manual del Usuario: MLC-42WCIX500Manual del Usuario: MLC-45ZCIX150Manual del Usuario: MLC-48WASN007Manual del Usuario: MLC-48WCIX015Manual del Usuario: MLC-48WCIX030Manual del Usuario: MLC-48WCIX045Manual del Usuario: MLC-48WCIX150Manual del Usuario: MLC-48WCIX225Manual del Usuario: MLC-50GCSX075Manual del Usuario: MLC-50GCSX150Manual del Usuario: MLC-50GCSX225Manual del Usuario: MLC-83WCIY045Manual del Usuario: MP Controlador (Discontinued)Manual del Usuario: MPII ControladorManual del Usuario: MVR-12WASN017Manual del Usuario: MVR-12WBSN002Manual del Usuario: MVR-20GCIY015Manual del Usuario: MVR-20GCIY100Manual del Usuario: MVR-20JCIY050-TManual del Usuario: MVR-20LCIY075-P-3RManual del Usuario: MVR-20QCIY054Manual del Usuario: MVR-20TCIY030-UPSManual del Usuario: MVR-20VCIY075Manual del Usuario: MVR-20VCIY108Manual del Usuario: MVR-20VCIY112Manual del Usuario: MVR-20WCID112-TManual del Usuario: MVR-20WCIY009Manual del Usuario: MVR-20WCIY015Manual del Usuario: MVR-20WCIY030Manual del Usuario: MVR-20WCIY045Manual del Usuario: MVR-20WCIY075Manual del Usuario: MVR-20WCIY112Manual del Usuario: MVR-20WCIY150Manual del Usuario: MVR-20WCIY150-A2TPS-3RManual del Usuario: MVR-20WCIY150-A2TPS-3R-HManual del Usuario: MVR-20WCIY225Manual del Usuario: MVR-20WCIY225-A2TPS-3RManual del Usuario: MVR-20WCIY400Manual del Usuario: MVR-21QBSN037Manual del Usuario: MVR-21WASN015Manual del Usuario: MVR-21WASN075Manual del Usuario: MVR-22WBSN007Manual del Usuario: MVR-22WCIX030Manual del Usuario: MVR-24VCID030-ADManual del Usuario: MVR-24VCID060-ADManual del Usuario: MVR-24VCID075Manual del Usuario: MVR-24WASN037Manual del Usuario: MVR-24WBSN005Manual del Usuario: MVR-24WBSN026Manual del Usuario: MVR-24WCID009Manual del Usuario: MVR-24WCID030Manual del Usuario: MVR-24WCID045Manual del Usuario: MVR-24WCID112Manual del Usuario: MVR-25WCID112Manual del Usuario: MVR-29WASN200Manual del Usuario: MVR-29WBSN050-PSManual del Usuario: MVR-3412Manual del Usuario: MVR-3601Manual del Usuario: MVR-3614Manual del Usuario: MVR-3634Manual del Usuario: MVR-38TDIY066Manual del Usuario: MVR-38TDIY200Manual del Usuario: MVR-38VDIY150Manual del Usuario: MVR-38WDIY015Manual del Usuario: MVR-38WDIY030Manual del Usuario: MVR-38WDIY045Manual del Usuario: MVR-38WDIY075Manual del Usuario: MVR-38WDIY112Manual del Usuario: MVR-38WDIY150Manual del Usuario: MVR-38WDIY225Manual del Usuario: MVR-38WDIY225-TMPIOPSOManual del Usuario: MVR-38WDIY300-TMPIOPSOManual del Usuario: MVR-38WDIY400Manual del Usuario: MVR-38WDIY500Manual del Usuario: MVR-38XDIY500-3RManual del Usuario: MVR-40TDID104Manual del Usuario: MVR-40VDIY104Manual del Usuario: MVR-40VDIY139Manual del Usuario: MVR-40WCIY015Manual del Usuario: MVR-40WDIY416Manual del Usuario: MVR-40WDIY600Manual del Usuario: MVR-40WDIY870Manual del Usuario: MVR-40ZDIY030Manual del Usuario: MVR-48ECIY1000Manual del Usuario: MVR-48GCID010-TManual del Usuario: MVR-48QCID125Manual del Usuario: MVR-48QCID138Manual del Usuario: MVR-48QCID166Manual del Usuario: MVR-48QCID333Manual del Usuario: MVR-48QCID500Manual del Usuario: MVR-48QCIY083Manual del Usuario: MVR-48QCIY125Manual del Usuario: MVR-48QCIY138Manual del Usuario: MVR-48QCIY1500Manual del Usuario: MVR-48QCIY166Manual del Usuario: MVR-48QCIY249Manual del Usuario: MVR-48QCIY333Manual del Usuario: MVR-48QCIY416Manual del Usuario: MVR-48QCIY416-3RManual del Usuario: MVR-48QCIY500Manual del Usuario: MVR-48QCIY500-TManual del Usuario: MVR-48QCIY582Manual del Usuario: MVR-48QCIY750-3RManual del Usuario: MVR-48TCID166Manual del Usuario: MVR-48TCID249Manual del Usuario: MVR-48TCID333Manual del Usuario: MVR-48TCID416Manual del Usuario: MVR-48TCID500Manual del Usuario: MVR-48TCID582Manual del Usuario: MVR-48TCIY083Manual del Usuario: MVR-48TCIY125Manual del Usuario: MVR-48TCIY166Manual del Usuario: MVR-48TCIY249Manual del Usuario: MVR-48TCIY333Manual del Usuario: MVR-48TCIY416Manual del Usuario: MVR-48TCIY500Manual del Usuario: MVR-48TCIY665Manual del Usuario: MVR-48VCID083-ADManual del Usuario: MVR-48VCID083-MADManual del Usuario: MVR-48VCID166Manual del Usuario: MVR-48VCID249Manual del Usuario: MVR-48VCIY125Manual del Usuario: MVR-48VCIY166Manual del Usuario: MVR-48VCIY166-TManual del Usuario: MVR-48VCIY225-MADManual del Usuario: MVR-48VCIY249Manual del Usuario: MVR-48VCIY300-MADManual del Usuario: MVR-48VCIY333Manual del Usuario: MVR-48VCIY665-TManual del Usuario: MVR-48WASN075Manual del Usuario: MVR-48WASN100Manual del Usuario: MVR-48WASN125-PSManual del Usuario: MVR-48WCID045-MPManual del Usuario: MVR-48WCID075Manual del Usuario: MVR-48WCID112Manual del Usuario: MVR-48WCID150-TManual del Usuario: MVR-48WCID225-PManual del Usuario: MVR-48WCIY045Manual del Usuario: MVR-48WCIY045-TManual del Usuario: MVR-48WCIY1000-TManual del Usuario: MVR-48WCIY112Manual del Usuario: MVR-48WCIY112-TManual del Usuario: MVR-48WCIY150Manual del Usuario: MVR-48WCIY225Manual del Usuario: MVR-48WCIY500Manual del Usuario: MVR-48WCIY500-SManual del Usuario: MVR-48WCIY750Manual del Usuario: MVR-48WCIY800-TManual del Usuario: MVR-48WCSD015Manual del Usuario: MVR-48WCSY150Manual del Usuario: MVR-60WASN007Manual del Usuario: MVR-83WCIX075Manual del Usuario: PLC-12WASN015Manual del Usuario: PLC-20WCSX009Manual del Usuario: PLC-20WCSX015Manual del Usuario: PLC-20WCSX025Manual del Usuario: PLC-20WCSX030Manual del Usuario: PLC-20WCSX045Manual del Usuario: PLC-20WCSX045-PManual del Usuario: PLC-20WCSX075Manual del Usuario: PLC-20WCSX150Manual del Usuario: PLC-21WASN007Manual del Usuario: PLC-21WASN010Manual del Usuario: PLC-21WASN015Manual del Usuario: PLC-21WASN025Manual del Usuario: PLC-21WASN037Manual del Usuario: PLC-21WASN050Manual del Usuario: PLC-21WBSN025Manual del Usuario: PLC-22WASN050Manual del Usuario: PLC-22WCSX015Manual del Usuario: PLC-22WCSX030Manual del Usuario: PLC-22WCSX045Manual del Usuario: PLC-22WCSX060Manual del Usuario: PLC-32WCSX015Manual del Usuario: PLC-33WCSX300Manual del Usuario: PLC-3487Manual del Usuario: PLC-38QDSX112Manual del Usuario: PLC-38WCSX015Manual del Usuario: PLC-38WCSX136Manual del Usuario: PLC-38WCSX150Manual del Usuario: PLC-39WCSX075Manual del Usuario: PLC-39WCSX150Manual del Usuario: PLC-39WCSX225Manual del Usuario: PLC-40WCSX037Manual del Usuario: PLC-41QBSN100Manual del Usuario: PLC-41WASN010Manual del Usuario: PLC-41WASN015Manual del Usuario: PLC-41WASN025Manual del Usuario: PLC-41WASN037Manual del Usuario: PLC-41WASN050Manual del Usuario: PLC-41WASN075Manual del Usuario: PLC-42WCSX009-C1Manual del Usuario: PLC-42WCSX015Manual del Usuario: PLC-42WCSX030Manual del Usuario: PLC-42WCSX045Manual del Usuario: PLC-42WCSX075Manual del Usuario: PLC-42WCSX112Manual del Usuario: PLC-42WCSX150Manual del Usuario: PLC-42WCSX225Manual del Usuario: PLC-43WCSX015Manual del Usuario: PLC-48WCSX015Manual del Usuario: PLC-48WCSX030Manual del Usuario: PLC-48WCSX045Manual del Usuario: PLC-48WCSX075Manual del Usuario: PLC-48WCSX112Manual del Usuario: PLC-48WCSX150Manual del Usuario: PLC-48WCSX225Manual del Usuario: PLC-48WDSX075Manual del Usuario: PLC-48WDSX083Manual del Usuario: SCI-21WASN005-PManual del Usuario: SCI-21WASN005-PKManual del Usuario: SCI-21WASN005-PK-GRAYManual del Usuario: SCI-25WASN005-PK-GRAYManual del Usuario: SCI-25WASN010-PKManual del Usuario: SCI-25WASN010-PK-GRAYManual del Usuario: SCI-25WASN020-PKManual del Usuario: SCI-25WCSX010-PKManual del Usuario: SCI-25WCSX020-PKManual del Usuario: SCI-25WCSX030-PKManual del Usuario: SCI-40WCSX040-PManual del Usuario: SCI-41WASN003-PManual del Usuario: SCI-41WASN005-PManual del Usuario: SCI-41WASN005-PKManual del Usuario: SCI-41WASN007-PKManual del Usuario: SCI-41WASN010-PManual del Usuario: SCI-41WASN010-PKManual del Usuario: SCI-41WASN015-PKManual del Usuario: SCI-41WASN020-PManual del Usuario: SCI-41WASN020-PKManual del Usuario: SCI-41WASN030-PManual del Usuario: SCI-41WASN030-PK-GRAYManual del Usuario: SCI-41WASN040-PKManual del Usuario: SCI-42WCSX010-PKManual del Usuario: SCI-42WCSX030-PKManual del Usuario: SCI-45WCSX005-PKManual del Usuario: SCI-45WCSX010-PKManual del Usuario: SCI-45WCSX015-PKManual del Usuario: SCI-45WCSX020-PKManual del Usuario: SCI-45WCSX030-PKManual del Usuario: SCI-45WCSX030-PK-GRAY2Manual del Usuario: SCI-45WCSX040-PK-GRAYManual del Usuario: SCI-50WCSX010-PKManual del Usuario: SLC-12WBSN002-3PNManual del Usuario: SLC-12WBSN005Manual del Usuario: SLC-12WBSN007Manual del Usuario: SLC-21PBSN007Manual del Usuario: SLC-21WBSN005Manual del Usuario: SVR-12FASN019-RManual del Usuario: SVR-12NBSN015Manual del Usuario: SVR-12NBSN015RManual del Usuario: SVR-12PBSN010Manual del Usuario: SVR-12PBSN010RManual del Usuario: SVR-12WBSN002Manual del Usuario: SVR-12WBSN002RManual del Usuario: SVR-12WBSN003Manual del Usuario: SVR-12WBSN005Manual del Usuario: SVR-12WBSN005-WVSManual del Usuario: SVR-12WBSN005RManual del Usuario: SVR-12WBSN007Manual del Usuario: SVR-12WBSN007-WVSManual del Usuario: SVR-12WBSN007RManual del Usuario: SVR-21PBSN007Manual del Usuario: SVR-21WBSN002Manual del Usuario: SVR-21WBSN005Manual del Usuario: SVR-24HBSN015Manual del Usuario: SVR-24HBSN015RManual del Usuario: SVR-24NBSN010Manual del Usuario: SVR-24NBSN010RManual del Usuario: SVR-24PBSN007Manual del Usuario: SVR-24PBSN007-3660Manual del Usuario: SVR-24PBSN007RManual del Usuario: SVR-24WBSN002Manual del Usuario: SVR-24WBSN002RManual del Usuario: SVR-24WBSN005Manual del Usuario: SVR-24WBSN005RManual del Usuario: SVR-41WASN005

Términos y Condiciones

Elija su ubicación

Encuentre un distribuidor en su área.

map
